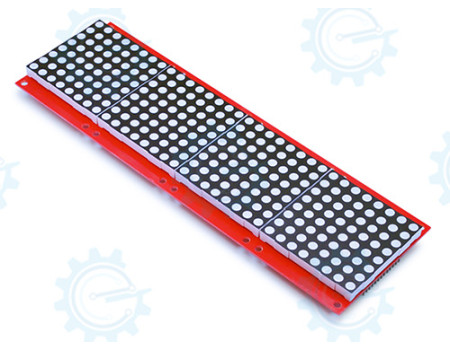

32 columns x 8 rows, 5mm diameter LED Dot Matrix Display module. Column drivers are on-board. Can be cascaded (up to 4 feet total length) to construct long message display.
Demo Video :
*This is an example animation features text display by sending the commands manually in PuTTytel Configuration
Wiring :
- Optional: Serial LED Matrix Display Controller (Below)
Specifications :
| Power Input | Driver Distributed |
| Compatibility |
|
| Display Type |
5mm LED Matrix 8x32 |
| PCB Dimensions |
220 mm x 55 mm (1 panel board) |
Downloads :
| Hardware Manual Serial LED Matrix Display Controller |
Download |
| Hardware Illustration 8x32 Dot Matrix NEW (with Serial LED Matrix Controller) |
Download |
| eGizmo SERIAL MATRIX LIBRARY NEW (with Serial LED Matrix Controller) |
Download |
| Sample Arduino / gizDuino Sketches WITHOUT LIBRARY |
Download |
| Supporting DOCUMENTS OLD (with LED Matrix Driver Shield) |
Download |
