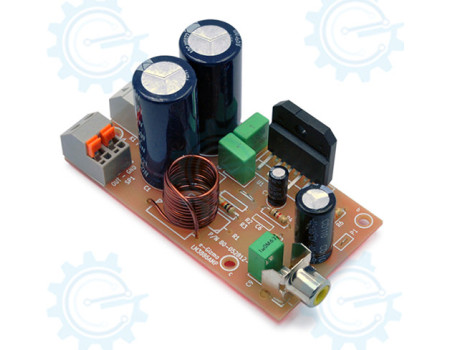

Audio Amplifier Module built on LM3886 chip, a high performance, high fidelity amplifier very popular in the DIY Audio world.
Note: Must be mounted on a heatsink. Heatsink is sold separately
- Sample Application
Specifications :
| Power Input | +/-29VDC |
| Power Output | @ 1% THD 68W sine average (RMS) @ 10% THD 100W sine average (RMS) |
| Sensitivity/Gain | -7.7dbV (0.816Vrms) / 26.6dB |
| Output Offset | -4.5mV (No load) |
| THD + Noise @ 1KHz |
0.0028% (1) |
| S/N |
104dB(2) |
| Frequency Response |
16Hz -> 160kHz |
| Slew Rate |
11V/us |
| Residual Noise | 490uV(2) |
| Damping Factor @ 100Hz | 180 |
| Output Impedance @ 100Hz | 0.0222 ohms |
Downloads :
| Manual |
Download |
| Freedom from Hum, Noise & Distortion (Application Notes) |
Download |
