6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke

6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke
0 reviews - Write a review
₱99.00
  • Stock: In Stock
  • Product Code: 230300044
  • Product ID: 230300044
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: motor , stepper motor , dc motor , gear motor

High Quality RS395 Type DC Motor usable down to 5VDC. With performance enhancing flux yoke to minimize magnetic leakage, keep the magnetic field inside of the motor where it is needed most.

Manufacturer: Johnson Electric

Nominal Voltage: 16.2VDC
Operating Voltage: 5V-16.2VDC
No Load RPM: 12500rpm @ 12VDC, 6000rpm @ 6VDC
No load Current: 350mA @ 12VDC
Stall Current: 14A

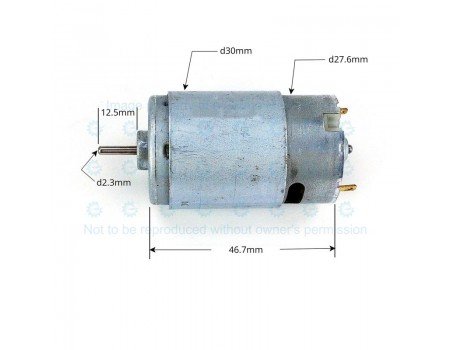

Approximate Dimensions:
Body Diameter: 27.6mm, 30mm with yoke included
Body Lenght: 46 .7mm body + 6.5 mm protruding cups
Shaft Lenght: 12.5mm
Shaft Diameter: 2.3 mm

Weight: 112g
