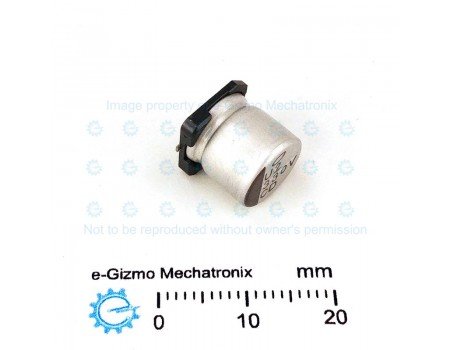

Nichicon 330uF 35V 105C Low ESR SMD Electrolytic Capacitor UCD Series

Name: Nichicon 330uF 35V 105C Low ESR SMD Electrolytic Capacitor UCD Series
Brand: nichicon
Price: 14.00 PHP
Availability: InStock

Nichicon 330uF 35V 105C Low ESR SMD Electrolytic Capacitor UCD Series

0 reviews - Write a review

₱14.00

Stock: In Stock
Brand: nichicon
Product Code: 101100029
Product ID: 101100029

nichicon

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: capacitor , electrolytic , smd , smd electrolytic

Description
Reviews

Nichicon UCD Series Low ESR Aluminum Electrolytic Capacitor

Manufacturer Part No: UCD1V331MCL1GB
Capacitance:330uF +/-20%
Working Voltage: 35VDC
Category Temperature Range: -55C to +105C
Dissipation Factor: 0.12 @120Hz
Ripple Current: 850mA @ 120Hz +105C
Impedance: 0.08R @100kHz
Dimensions: d10 x 10mm

Markings may vary from what is shown in the image.
