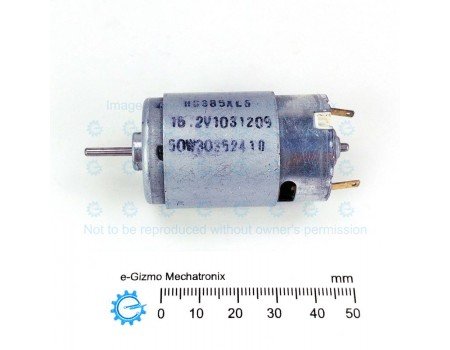

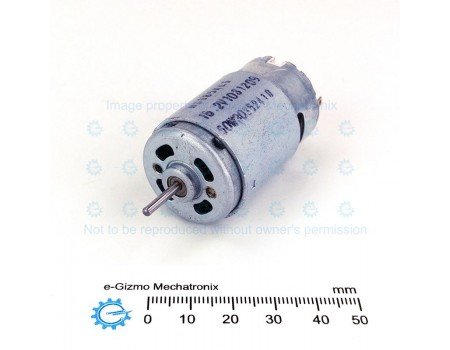

6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)

6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
6-16.2VDC 50W 12500rpm High Torque DC Motor HC385XLG Type with Flux Yoke (A)
0 reviews - Write a review
₱75.00
  • Stock: In Stock
  • Product Code: 230300037
  • Product ID: 230300037
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: motor , stepper motor , dc motor , gear motor

Good Quality RS395 Type DC Motor usable down to 5VDC. With performance enhancing flux yoke to minimize magnetic leakage, keep the magnetic field inside of the motor where it is needed most.

Manufacturer: Johnson Electric

Nominal Voltage: 16.2VDC
Operating Voltage: 5V-16.2VDC
No Load RPM: 12500rpm @ 12VDC, 6000rpm @ 6VDC
No load Current: 350mA @ 12VDC
Stall Current: 14A

Approximate Dimensions:
Body Diameter: 27.6mm, 30mm with yoke included
Body Length: 46 .7mm body + 6.5 mm protruding cups
Shaft Length: 12.5mm
Shaft Diameter: 2.3 mm

Weight: 112g
Note: (A) Offered at a discounted price due to the presence of light scratches on body surface.

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
