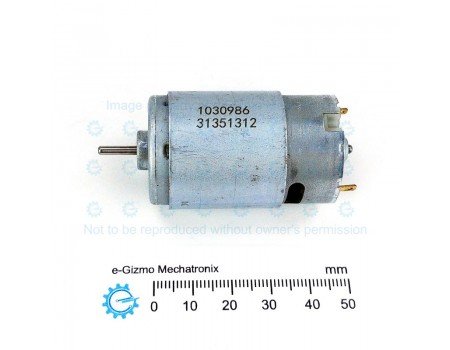

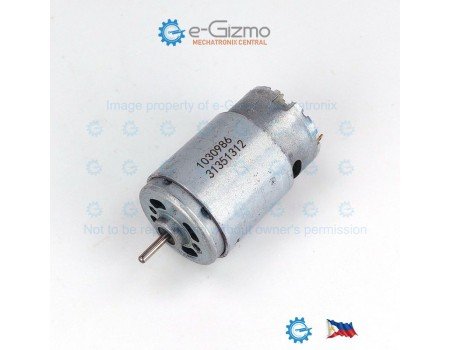

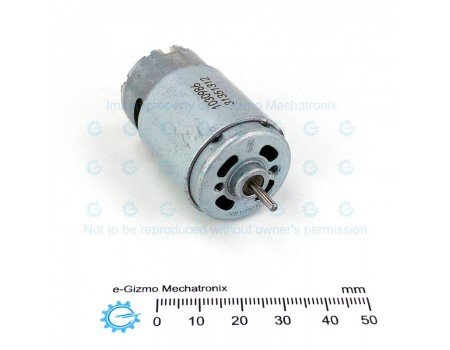

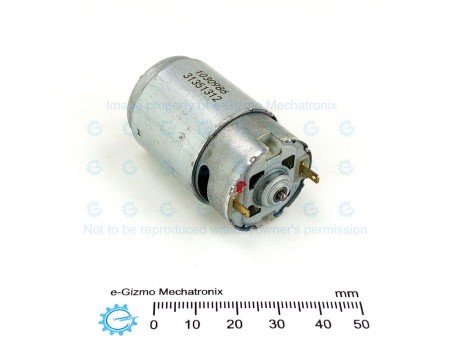

6-16.2VDC 10000rpm High Torque DC Motor 1030986 RS395 Type

Good Quality RS395 Type DC Motor usable down to 5VDC. With performance enhancing flux yoke to minimize magnetic leakage, keep the magnetic field inside of the motor where it is needed most.

Nominal Voltage: 16.2VDC
Operating Voltage: 5V-16.2VDC
No Load RPM: 10000rpm @ 12VDC, 3900rpm @ 6VDC
No load Current: 170mA @ 12VDC
Stall Current: 9A

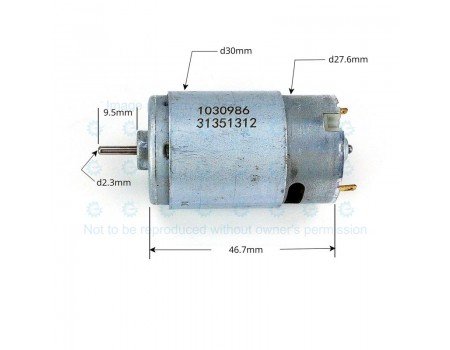

Approximate Dimensions:
Body Diameter: 27.6mm, 30 with yoke included
Body Length: 46 .7mm body + 7 mm protruding cups
Shaft Length: 9.5mm
Shaft Diameter: 2.3 mm

Weight: 116g

Note: Offered at a discounted price due to the presence of light scratches on body surface.
