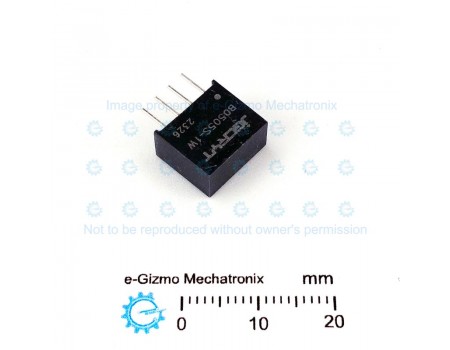

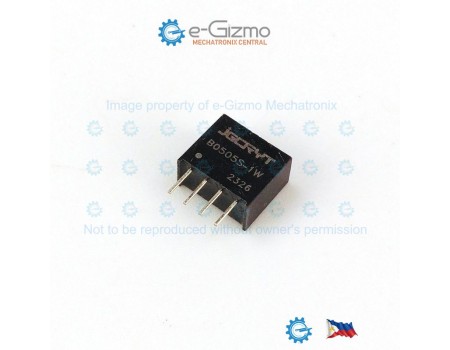

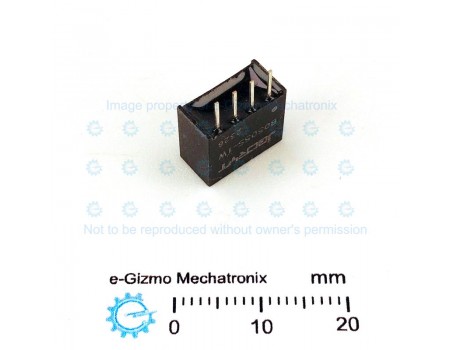

B0505S 5V 1W Isolated and Unregulated DC/DC Converter

B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
B0505S 5V 1W Isolated and Unregulated DC/DC Converter
0 reviews - Write a review
₱58.00
  • Stock: In Stock
  • Product Code: 151600001
  • Product ID: 151600001
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: ic , power supply

Isolated DC/DC converters are used whenever it is desirable to isolate the power source of a particular part of the circuit from the rest of the circuit. Example application includes breaking of ground loops to audio circuits (main cause of hum and motorboating), isolation to improve noise rejection and safety, to simply generating a negative voltage source from a single positive power source.

Input Voltage Range: 4.5-5.5VDC
Output Voltage: 5VDC nominal
Output Current: 200mA max
Efficiency: 70% typical
Isolation: 1kV DC
Operating Temperature: -40C to +85C

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
