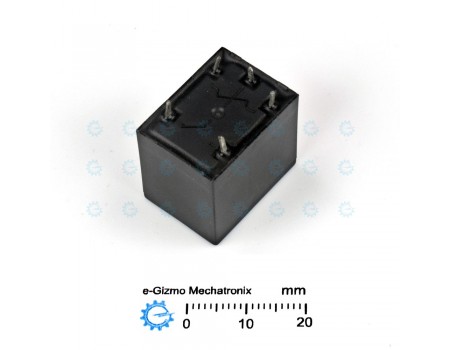

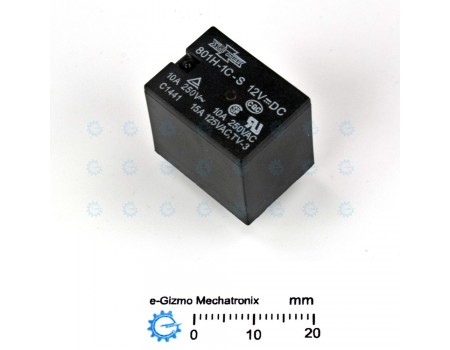

Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V

Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
Song Chuan 12V 10A SPDT Relay UL CSA CQC Approved 801H-1C-S-12V
0 reviews - Write a review
₱45.00
  • Stock: In Stock
  • Brand: Song Chuan
  • Product Code: 130800026
  • Product ID: 130800026
Song Chuan
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: relay

Genuine Song Chuan Relay.

Nominal Coil Voltage: 12V
Usable Voltage Range: 10-16VDC
Coil Resistance: 400R
Coil Current: 30mA

Contact Rating: 10A @ 250VAC TV-3
Contact Resistance: 50mR Max
Contact Configuration: SPDT
Life Expectancy: >50,000 operations

No of pins: 5
Safety Approvals: UL, CSA, CQC

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
