12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield

12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
12-24V 6000rpm High Torque DC Motor Double Shaft Magnetic Shield
0 reviews - Write a review
₱89.00
  • Stock: In Stock
  • Brand: Standard
  • Product Code: 230300030
  • Product ID: 230300030
Standard
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: motor , stepper motor , dc motor , gear motor

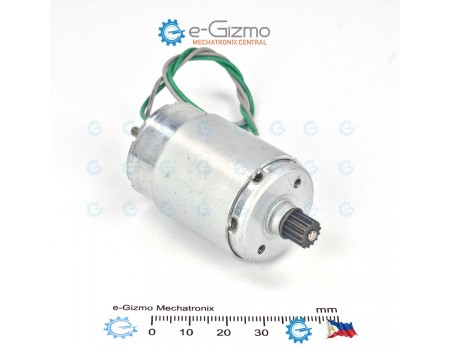

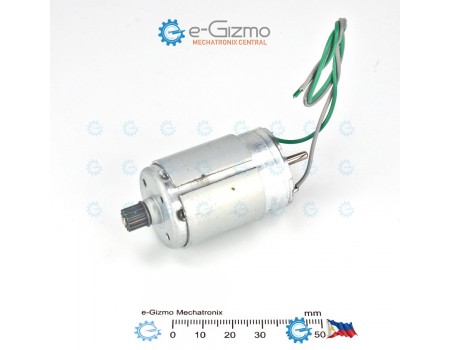

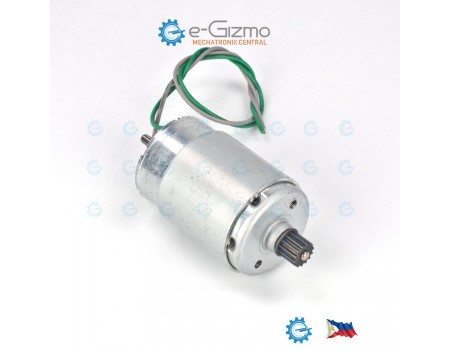

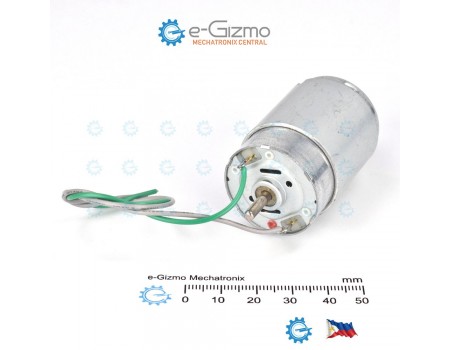

Good Quality High Torque DC Motor usable down to 5VDC. Double-end drive shaft with 14 teeth metal gear. Gear can be removed if not needed.

With a Magnetic shield to minimize stray magnetic fields from interfering with nearby sensitive parts.

Nominal Voltage: 12VDC
Operating Voltage: 12V-24VDC
No load Current: 77mA @ 24VDC
Stall Current: 1.2A @ 12V, 2.2A @ 24V
No Load RPM: 1320 rpm@6V, 2880rom@12V,6000rpm@24V

Approximate Dimensions:
Body Diameter: 30.5
Body Lenght: 47mm body + 2.6x2 mm protruding cups
Shaft Lenght: 8mm front + 11mm rear
Shaft Diameter: 3.1 mm

Weight: 142g

Note: Wire colors may vary.

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
