Wago Terminal Block Push Button 235-02 12 pole 10A

Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
Wago Terminal Block Push Button 235-02 12 pole 10A
0 reviews - Write a review
₱82.00
  • Stock: In Stock
  • Brand: WAGO
  • Product Code: 580013299
  • Product ID: 580013299
WAGO
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: connector

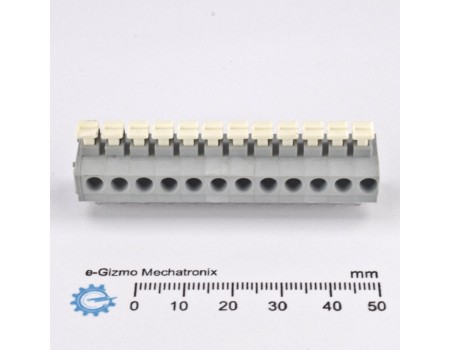

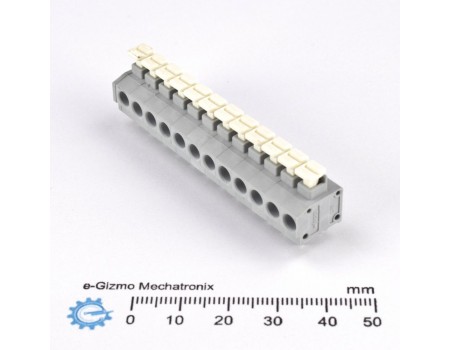

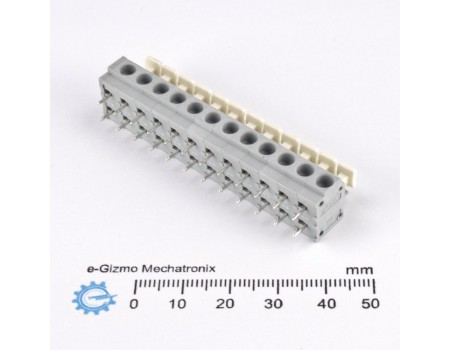

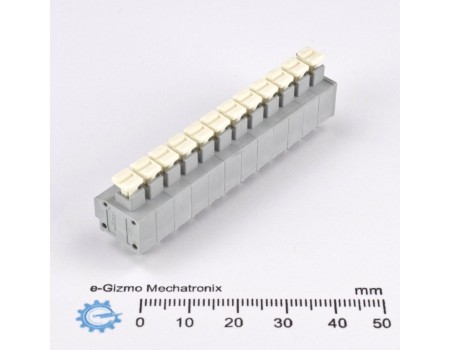

PCB terminal block, push in CAGE CLAMP, 12 Way
Note: These are modular terminals -You can reduce the number of ports if you need to. (e.g., You can make it into an 8-way terminal by prying away the 4 terminals opposite the cover side.)
Premium Brand

Rated Voltage: 300V
Rated Current: 10A
Connection Technology: Push-in CAGE CLAMP
Actuation Type: Push-button
Wire Capacity: AWG20-AWG14 (0.2 - 1.5mm2)

Pin Spacing: 5-5.08 mm
Set to metric or inch pin spacing by compressing terminal strips or lightly pulling them apart

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
