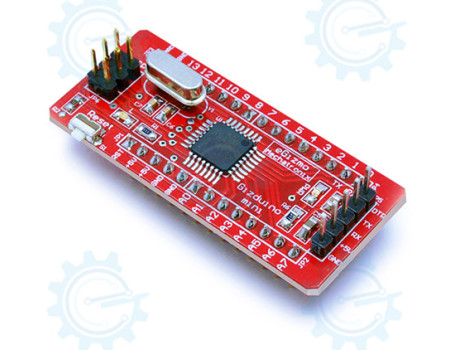

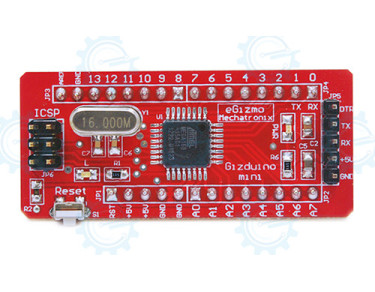

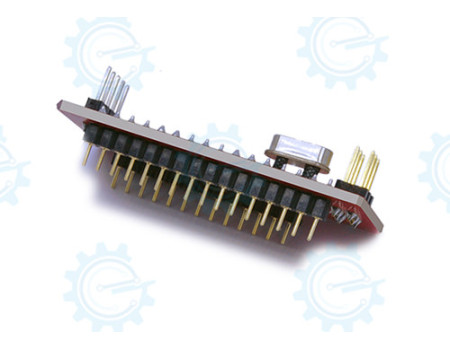

gizDuino mini is an Arduino software compatible board in a small DIP-size board. It is a minimalist design, but has all the necessary components needed for a quick deployment. Pin spacings are likewise standard, allowing you to use it with your breadboard and protoboards.
Initially available in four variants:
gizDuino mini with ATmega8
gizDuino mini with ATmega88
gizDuino mini with ATmega168
gizDuino mini with ATmega328
Specifications :
| Power Input |
1.8V-5.5V
|
| Clock Frequency |
8MHz ( ATMEGA8L ) 16MHz ( ATMEGA 88, 168, 328 )
|
| Programming Ports |
Arduino & ICSP
|
| Board Dimensions |
Length : 51mm
Width : 23mm
|
Downloads :
Getting Started with gizDuino boards (How to Install the Arduino IDE and Driver)
|
Blog
|
Hardware Manual (Guide)
|
Download
|
Arduino IDE Softwares and Prolific Drivers
|
Download
|
PCB Top Layer Guide
|
Download
|
PCB Bottom Layer Guide
|
Download
|
Schematic
|
Download
|
