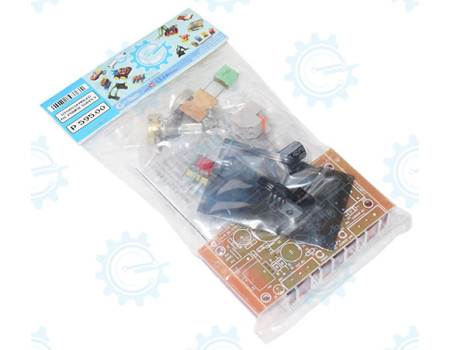

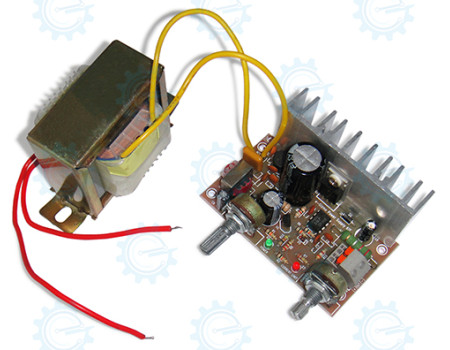

Our new e-Gizmo DC Power Supply kit is a linear type regulated power supply circuit. This simple Power Supply project has a features and performance that of a laboratory power supply. It has both constant voltage and constant current feature, just to start with. You can adjust whatever voltage or current value you want. It is fun and easy. You can build this one by yourself.
Note: This Kit is DIY. Soldering Skill and schematic reading skill is required
Features :
| Illustrated Assembly Guide for Power supply kit. |
| Constant Voltage Mode Verification |
| Constant Current Mode Verification |
Specifications :
| Dimensions: | 80 mm x 46 mm |
| Output voltage: | 1.28 to 17.58VDC |
| Output Current: | 0.1 to 1.1A |
| Voltage regulation: | 0.02% No load to Full Load |
| Current Regulation @0.5A | 0.258%, 2.0 to 10.0 |
| Output Hum and Noise @10V(Unweighted): | - 170uV No Load, CV Mode - 330uV @ 1A CV Mode - 230uV @ 0.5A, CV Mode - 22mV @ 0.5A, 10V CC Mode |
