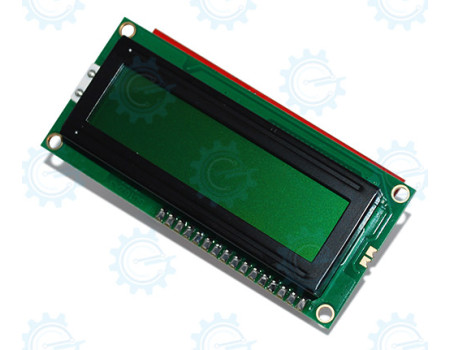

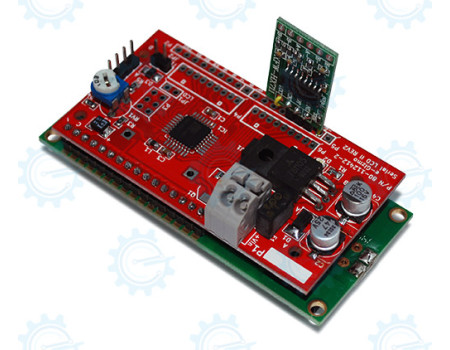

e-Gizmo Load Cell Display Unit offers an easy and affordable weighing scale function for your projects. By just adding an appropriate load cell, it is possible to build a standalone unit. It has a user presettable comparator function (High-Low) that you can use for simple weight detection and screening.
It has a UART communication port that you can connect with your gizDuino/Arduino for realtime data logging and control functions.
Wiring :
- This is the sample application for Load cell Display Unit with GizDuino PLUS.
Features :
| 2x 16 LCD Display |
| 24-bit Sigma Delta ADC Converter |
| 4 + 1 digit precision |
| UART control (TTL level) |
| Built in screen contrast adjustment |
| Accepts 3kg to 400kg load cell capacity |
| Comparator Function |
| Loadcell is optional |
Downloads :
| Manual | Download |
| Top Layer Guide | Download |
| Bottom Layer Guide | Download |
| Image Reference | Download |
| Arduino Codes for Sending Commands Calibration | Download |
| Arduino Codes for Streaming Data from LDU | Download |
