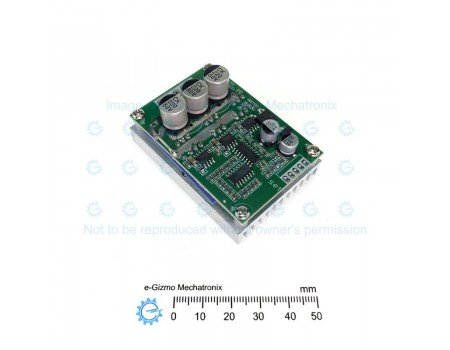

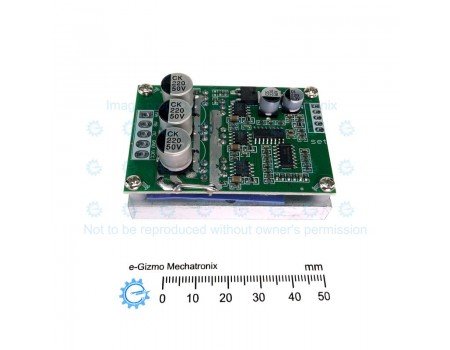

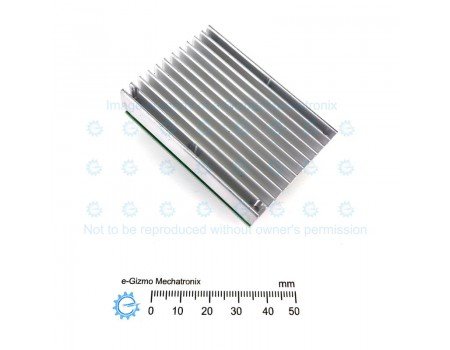

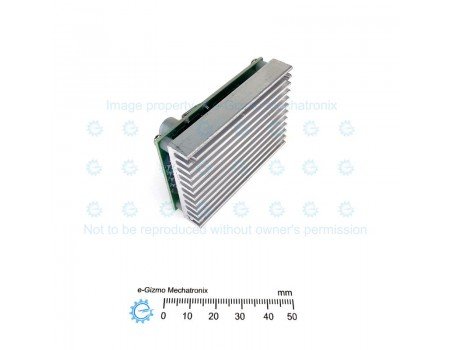

500W BLDC Brushless DC Motor Controller Driver with Heatsink

Motor Controller for 100W-500W 3-phase Brushless DC Motors.

Note: This version has no input for Hall Sensors.

Operating Voltage: 12-36VDC (Note 1)
Operating Current: 15A Max.
Output Capacity: 500W
Speed Control Input Voltage: 0-5VDC
Hall Sensor Input: NONE

Note 1: Although the manufacturer rates this for up to 36VDC, It is recommended to limit the operation voltage to 25VDC. The onboard regulators are operated to their limits when operated at 36V and may cause the board to fail with just short time usage.

Note 2: The manufacturer did not mention any protection feature, hence you should assume there is none. Do not short circuit the output and/or let the module run too hot.
