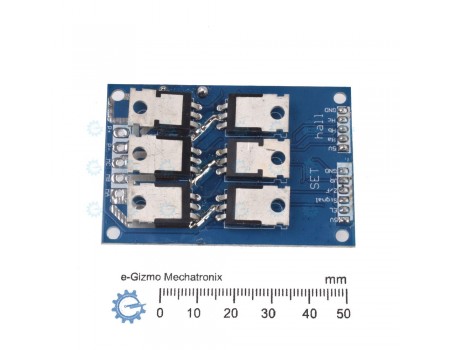

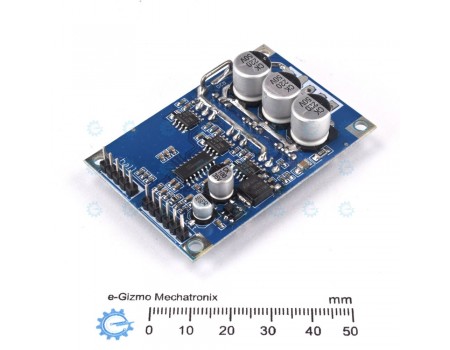

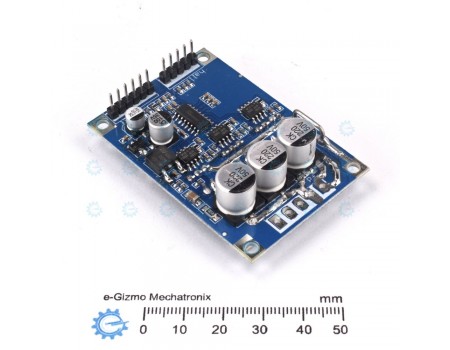

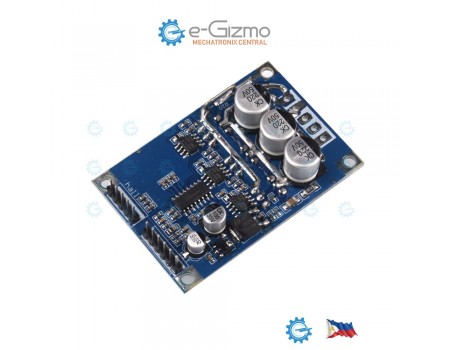

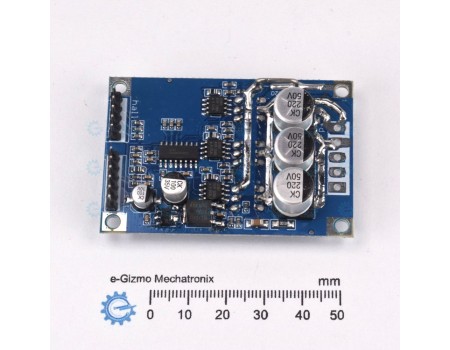

500W BLDC Brushless DC Motor Controller Driver with Hall Sensor Inputs

Motor Controller for 100W-500W 3-phase Brushless DC Motors.

Operating Voltage: 12-36VDC (Note 1)
Operating Current: 15A Max.
Output Capacity: 500W (Note 2)
Speed Control Input Voltage: 0-5VDC
Hall Sensor Input: 0-5V Logic

Note 1: Although the manufacturer rates this for up to 36VDC, It is recommended to limit the operation voltage to 25VDC. The onboard regulators are operated to their limits when operated at 36V and may cause the board to fail with just short usage.

Note 2: The transistors must be mounted on a sufficient heatsink when operated with >200W motor load.
