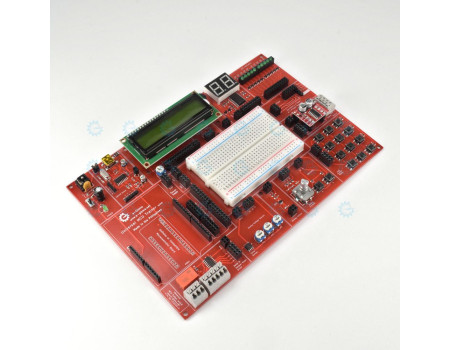

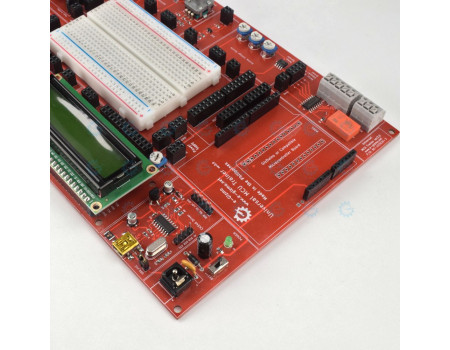

e-Gizmo Universal MCU Digital Trainer II

Our new revision of e-Gizmo Universal MCU Digital Trainer Kit equip with gizDuino UNO-SE/Student edition (or Arduino UNO).
Were you are ready connecting ONLY some wires on the module that you want to learn or just combining the Sensors, Alarm and display
the value on the 16x2 Character Liquid Crystal Display. Sample codes and Wiring diagram are downloadable (see the link below).

Package included:

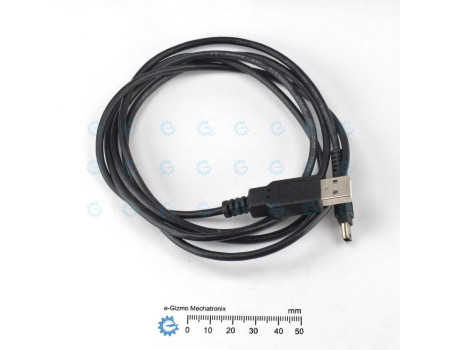

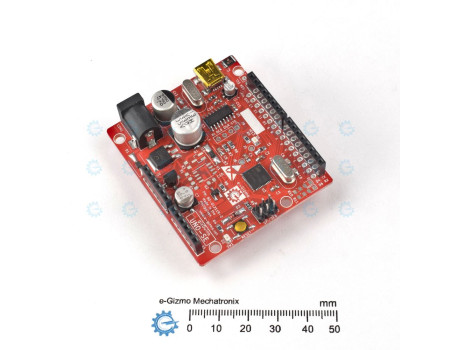

- gizDuino UNO-SE with cable

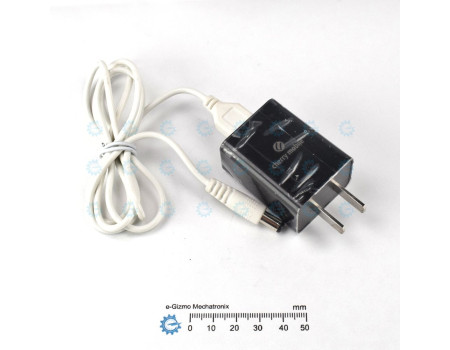

- 5V adaptor

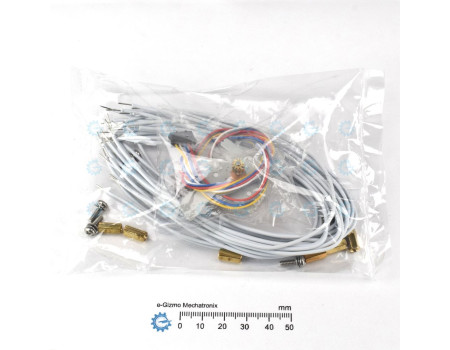

- 20-jumper M-M wires 20cm
- Stepper Motor
- 6pc brass stud and screws for stand

Onboard modules are:
- CH340 Driver (For gizDuino mini168p/328p. +mini164p/324p/644p, Arduino mini/pro)
- 2x16 LCD Display Green
- For 2x16 LCD with I2C module socket connector*
- DS1307 Real-Time Clock module
- Passive Buzzer
- 2-digit 7 segment display
- 10 LED indicators*
- For MAX7219 Dot Matrix 1-4 Panel and 4-8 Digits 7segment socket connector*(module sold separately)
- 2-Channel DC motor driver 1.5A with DC geared motor

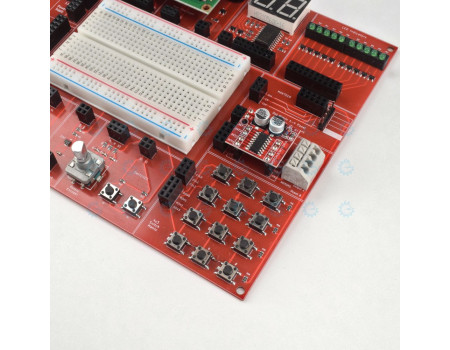

- 4x3 Switch Matrix
- 2-Push buttons
- Rotary Encoder
- DAC (Digital-to-Analog converter)
- Analog Voltage Source
- Temperature Sensor LM34
- Stepper Motor Driver ULN2003A
- 5V relay
Legend: * New features

You can register using your gmail account and good to go.
Enjoy UNLIMITED access with other topics for UMTv2,e-BOT, P-BOT, Kto12Bot,ArduBlock,Micropython and more.

Downloads :
