SSD1306 OLED Module

SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
SSD1306 OLED Module
0 reviews - Write a review
₱139.00
  • Stock: In Stock
  • Product Code: 210300008
  • Product ID: 210300008
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , kit display , display

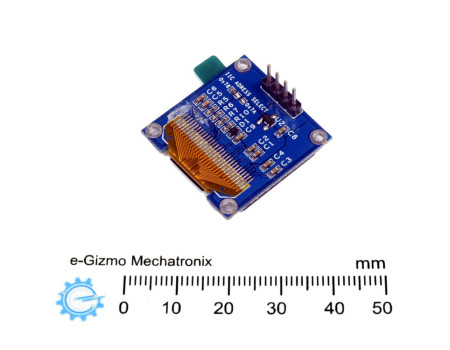

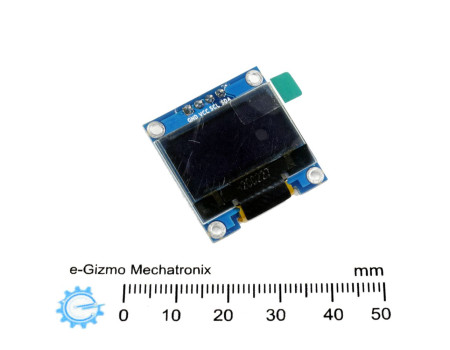

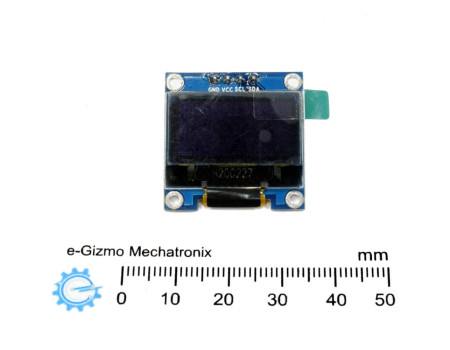

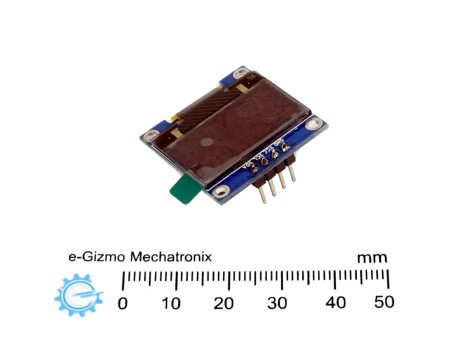

0.96-inch 128x64 pixels SSD1306 OLED Display Module.
Wide operating voltage makes it logic compatible with a wide range of Microcontroller boards, including (not limited to) 5V gizDuino and Arduino boards, and 3.3V STM32 and Raspberry Pi boards.

OLED - generate its own light by pixels, no backlight is needed.

Operating Voltage: 3V-5VDC

*Color: Yellow and Blue

Display Resolution: 128x64 pixels
Interface: SPI or I2C
Driver Chip: SSD1306
Board Dimensions: 27.3W x 27.8L x 3.7H mm
Weight: 4g

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
