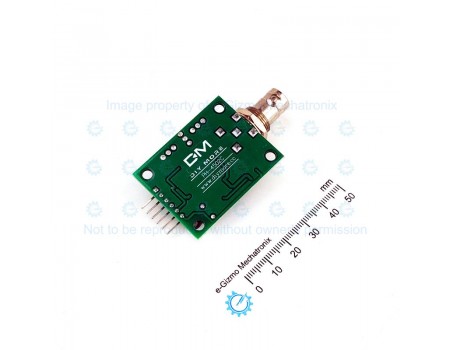

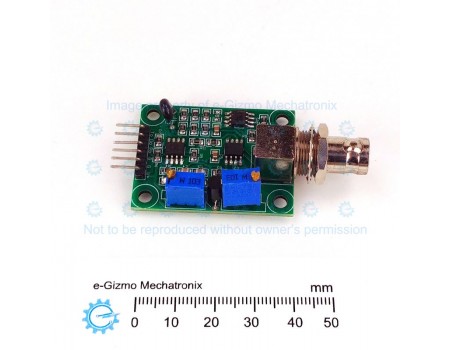

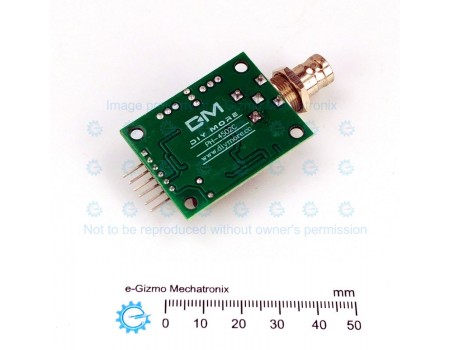

PH Probe Sensor + Amplifier Module

PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
PH Probe Sensor + Amplifier Module
0 reviews - Write a review
₱999.00
  • Stock: In Stock
  • Product Code: 211100022
  • Product ID: 211100022
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , kit sensor , measurement , kit measurement

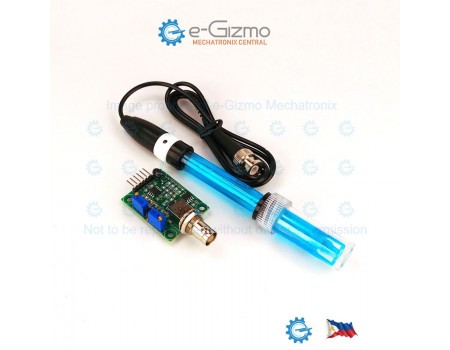

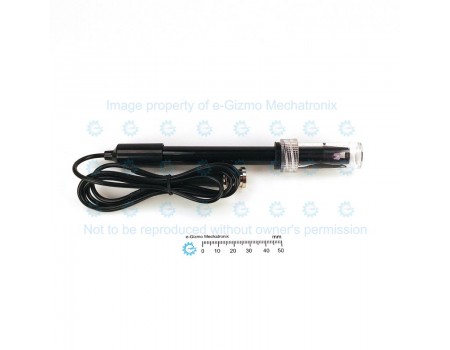

PH Probe and Amplifier sensor kit

Supply voltage: 5 ± 0.2V (AC · DC)
Supply current: 5-10mA
PH range: 0-14
Detection Temperature range: 0-80 °C
Response time: =5S
Settling Time: =60S
Working temperature: -10 ~ 50 ° (nominal temperature 20 °)
Humidity: 95% RH (nominal humidity 65% RH)
Output: analog voltage signal output
With 4pcs M3 Mounting Holes


Downloads :
Hardware Manual
 Download
Sample Arduino / gizDuino Sketch
 Download


Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
