L293 L293D Motor Driver Shield

L293 L293D Motor Driver Shield
L293 L293D Motor Driver Shield
L293 L293D Motor Driver Shield
-4%
L293 L293D Motor Driver Shield
L293 L293D Motor Driver Shield
L293 L293D Motor Driver Shield
L293 L293D Motor Driver Shield
0 reviews - Write a review
₱134.00
₱140.00
  • Stock: In Stock
  • Product Code: 210700002
  • Product ID: 210700002
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , kit motor , kit driver , motor driver , driver , L293D , L293D Driver

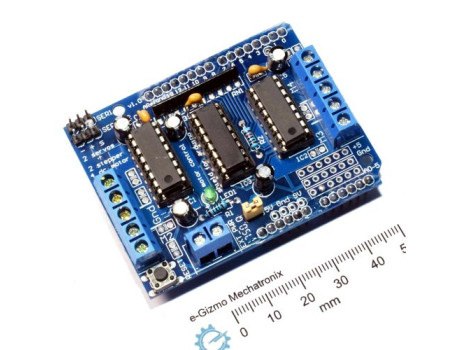

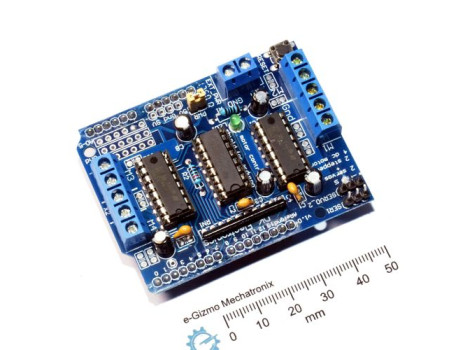

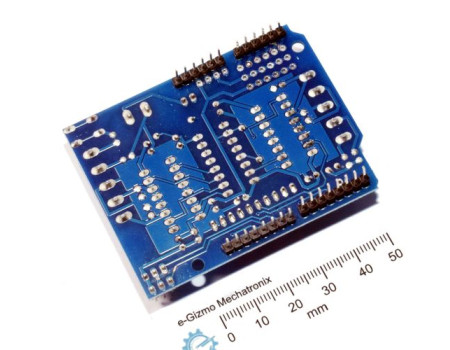

The **L293D Motor Driver Shield** is a device that can be used to control DC, stepper, and servo motors using an Arduino board. It is compatible with the Arduino UNO and MEGA boards. The shield features two L293D motor driver ICs and one eight-bit shift register chip. The L293D IC is a low-voltage operating device that provides a continuous bidirectional Direct Current to the Motor. It has an internal H-bridge installed that can operate two DC motors or a single stepper motor. The shield can drive 4 DC motors, 2 unipolar/bipolar stepper motors, or 2 servo motors simultaneously.

Source: Conversation with Bing, 1/5/2024

-Drives 4 DC Motor or two Stepper Motor
-Built-in 2 Channel Servo Motor Interface Port
- 0.6A (1.2A peak) load capacity
- Motor Voltage: 4.5V to 36VDC
- 8-bit speed control function for DC motors

Downloads :
Adafruit Motor Shield Library
