PH Sensor Amplifier

Pre-order

PH Sensor Amplifier

0 reviews - Write a review

₱661.00

Stock: Pre-order
Product Code: 211100008
Product ID: 211100008

Qty

Pre-order

Buy Now

Add to Wish List Compare this Product

Tags: kit , kit sensor , PH sensor , PH probe

Description
Reviews

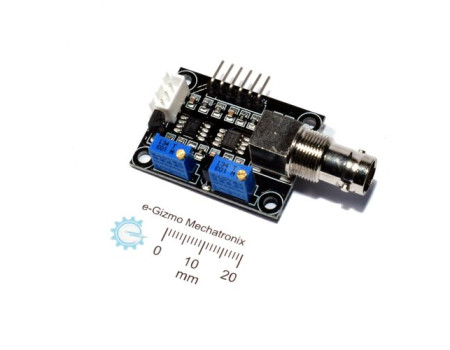

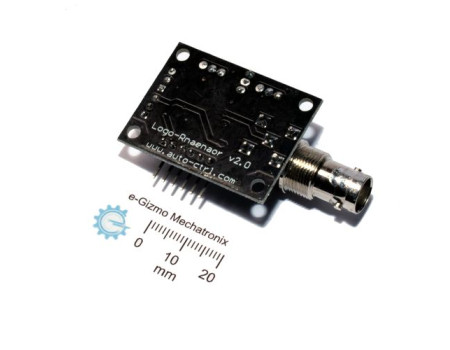

PH Sensor Amplifier Module with Temperature Sensor
Operation Voltage: 5VDC
PH Range: 0-14
Output type: Analog
Temperature Range: 0-80C

Pin Assignment :
VCC : +5V DC
GND : GND
GND : Ph Sensor -
Po : Ph Sensor Analog Output
T1 : Temperature Sensor Analog Output (LM35)
T2 : Temperature Sensor Digital Output (DS18B20)

Downloads :

Hardware Manual	Download
Sample Arduino / gizDuino Sketch	Download

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
