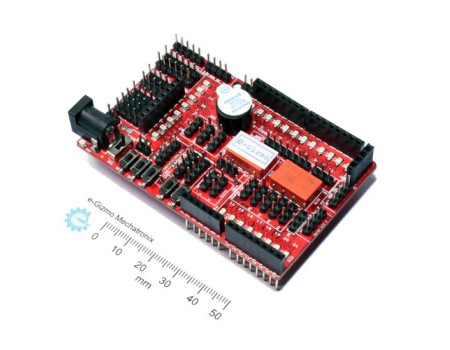

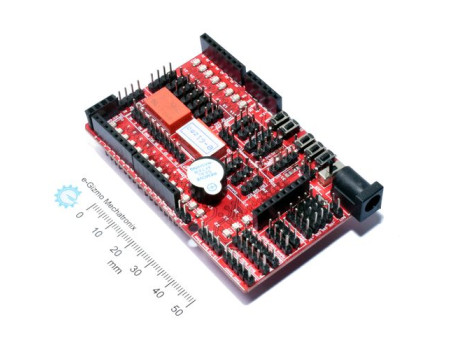

This gizDuino (Arduino) compatible shield is primarily designed for e-Gizmo Mobile Robot kits, but it can be used as well as a multi function expansion shield with Arduino boards.
Periphery includes:
1x Buzzer
2x 5V DPDT Relay
5x uncommitted push button switch
1x Slide Switch

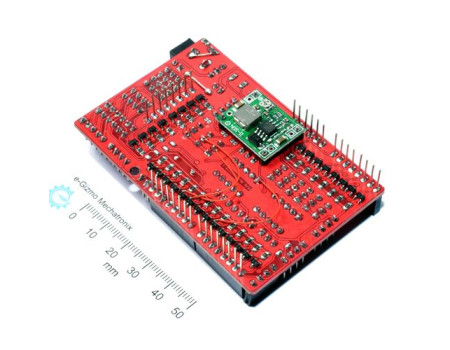

1x DC/DC Converter Module
and multiple male pin connectors so that you can easily connect devices such as
- Ultrasonic sensors
- Servo Motors
- Serial LCD
- SPI and I2C devices
and a host of other devices
I/O lines have LED monitor that will allow you to quickly check I/O activities by visual, this can be a very useful aid when debugging and troubleshooting.
*Designed and made in the Philippines by e-Gizmo
Sample Arduino applications are available.
Downloads :
MOBOT Shield Manual (The beast illustration)
|
