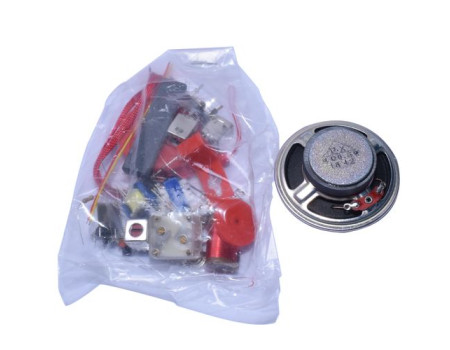

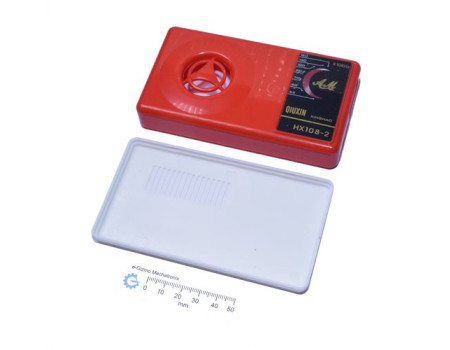

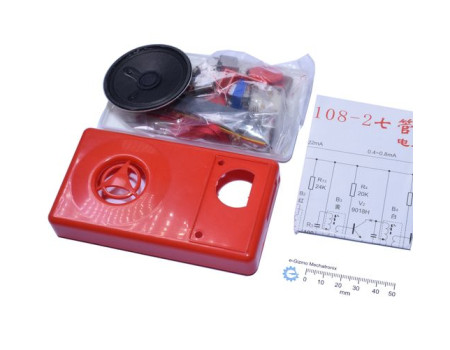

AM Radio Kit

AM Radio Assembly Kit
Build it yourself Transistor AM Radio Kit
Classic Superhet AM Radio Circuit with IF 3-stage IF transformer
Fully discrete transistor design, no IC,
Transformer Coupled Audio Amplifier

This is a great kit for intermediate builders (not recommended for beginners) wishing to learn by building classic AM radio circuits.

Assembly required. Requires 2x AA Batteries (not included in the kit).

Chinese Instruction Assembly Manual.

Note: This is a self assembly product hence is not covered by any warranty.

Schematic Snapshot:
