PBOT Jr. Bluetooth Controlled

PBOT Jr. Bluetooth Controlled
PBOT Jr. Bluetooth Controlled
0 reviews - Write a review
₱3,311.50
  • Stock: In Stock
  • Product Code: 77012866
  • Product ID: 77012866
Add to Cart
Buy Now
Add to Wish List Compare this Product

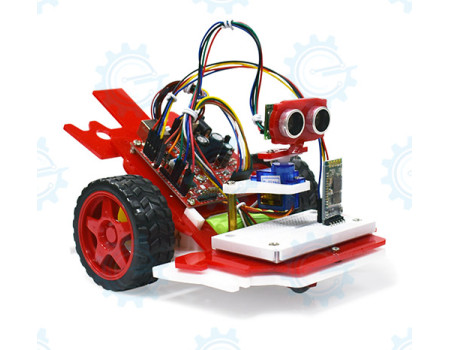

Basic Programmable Mobile Robot with Breadboard.
- Open circuit design for easy module interfacing
- Arduino / gizDuino Compatible Shield Port
- In-Circuit programming & Charging
-Dual Full-Bridge PWM Motor Driver
- Program with Arduino IDE or ArduBlock Graphical Programming

Base Specifications:
Microcontroller: ATMEGA168 16K program Memory
Power Source: Rechargable Ni-MH Battery (included)
USB Bridge: PL2303D
Charging Input Voltage: 9V-10VDC
Sensors: Ultrasonic Distance Sensor & 3-Channel Line Sensors

Bluetooth Variant:
With Bluetooth Module installed. This will allow your MOBOT to be controlled remotely by a mobile phone or a PC.

FREE Downloadable Android App is available at Google Play Store


Demo Video :



Features :
Open circuit design for easy module interfacing
Arduino / gizDuino Compatible Shield Port
In-Circuit programming & Charging
Dual Full-Bridge PWM Motor Driver
Available in many variants and with Editable Sample Codes/Sketch (Bluetooth Controlled w/ free Android App & PS2 Controlled)



Specifications :
Power Input 7-9VDC
Charger Input
 9-10VDC
On-Board peripherals
 2CH-PWM Motor Driver 6V 1.5A
3-Ch Line Tracker Sensor 10mm range
PCB Dimension (PBOT Jr. Board)
 62x67mm
Physical Dimensions
 Weight:
Standard = 0.558kg
BT Controlled = 0.566kg
PS2 Controlled w/ e-GRA = 0.613kg
Chassis Only = 0.362kg

Height / Vertical Clearance:
Standard = 10.5cm
BT Controlled = 10.5cm
PS2 Controlled w/ e-GRA = 21.5cm
Chassis Only = 10.5cm



Downloads :
Technical Manual
 Download
Assembly Manual (Standard)
 Download
Assembly Manual (Chassis)
 Download
Sample Arduino/gizDuino Sketches
 Download
