NE555 Pulse Frequency Module

NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
NE555 Pulse Frequency Module
0 reviews - Write a review
₱49.00
  • Stock: In Stock
  • Product Code: 580013280
  • Product ID: 580013280
Add to Cart
Buy Now
Add to Wish List Compare this Product

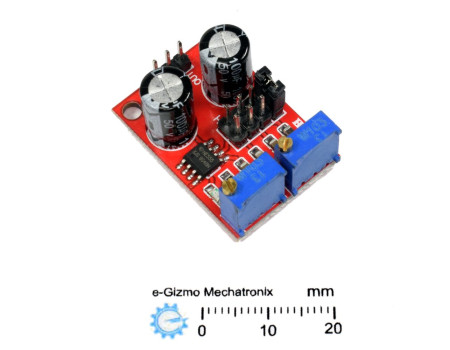

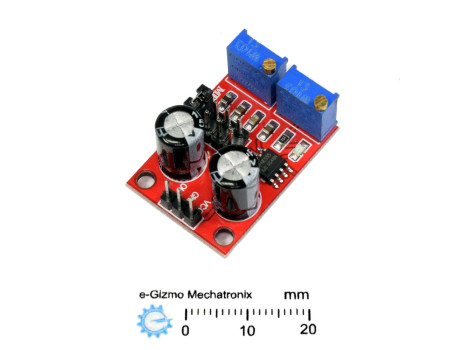

A low-cost pulse generator module based on a 555 timer chip. It has a jumper selectable frequency band setting spanning 1Hz-200KHz in 4 ranges, a frequency and duty cycle trimmer resistor adjustment.


Specifications :
Power Input 5-15VDC
Current Output
 15mA to 35mA
Input current
 >=100mA
Output Amplitude
 4.2V V-pp to 11.4 V-pp (Different input voltage, the output amplitude will be different)
Output LED Indications
 - Low level, LED is ON
- High Level, LED is OFF
- Low Frequency, LED is Flashing
PCB Dimensions
 22x31mm



Downloads :
Hardware Manual
 Download
