Touch Capacitive Sensor

Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
Touch Capacitive Sensor
0 reviews - Write a review
₱29.00
  • Stock: In Stock
  • Product Code: 580022717
  • Product ID: 580022717
Add to Cart
Buy Now
Add to Wish List Compare this Product

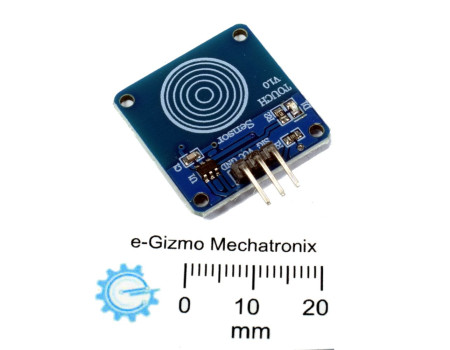

This module is based on a touch-sensing IC TTP223B capacitive touch switch module.
In the idle state, output is low, and the sensor is in low power mode. When a touching finger is the detected, it switches to the normal power mode and switch its output to logic high. The module returns to low power mode in 12 secs when no further detection occurs.

Module can be installed in plastic, glass and non metallic surface materials.




Specifications :
Power Input5VDC
Data Interface
Digital (1-detected & 0-No detection)
Sensing Type
Capacitive
PCB dimensions
24x24mm




Downloads :
Hardware Manual
Download
Sample Arduino / gizDuino Sketch
Download
