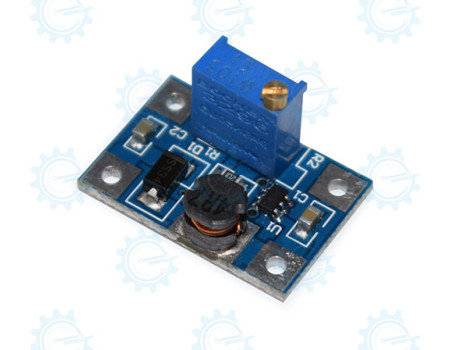

B6286 Step-up Adjustable Boost Converter

B6286 Step-up Adjustable Boost Converter
Pre-order
B6286 Step-up Adjustable Boost Converter
0 reviews - Write a review
₱65.00
  • Stock: Pre-order
  • Product Code: 580014444
  • Product ID: 580014444
Pre-order
Buy Now
Add to Wish List Compare this Product

B6286 Step-up Adjustable Boost Converter




Features :
Integrated 80mOhms power MOSFET
Up to 28V adjustable
1.2Mhz fixed switching frequency
Internal Compensation
Automatic Pulse frequency modulation mode at light loads.
Up to 96% efficiency




Specifications :
Power Input 2V-24VDC
Output Voltage
 2V-28VDC (Input must be lower than the output volatage)
Recommended operating current
< 1A
Maximum operating current
 2A
Converter efficiency
 Up to 93%
Regulator chip
 B6286
Size
 31x18x6.7mm
Weight
 3.5g




Downloads :
Technical Manual
 Download
B6286 datasheet
 Download
