Orange Pi Lite

Orange Pi Lite
Orange Pi Lite
Orange Pi Lite
Out Of Stock
Orange Pi Lite
Orange Pi Lite
Orange Pi Lite
Orange Pi Lite
0 reviews - Write a review
₱1,075.00
  • Stock: Out Of Stock
  • Product Code: 580042197
  • Product ID: 580042197
Out Of Stock
Buy Now
Add to Wish List Compare this Product

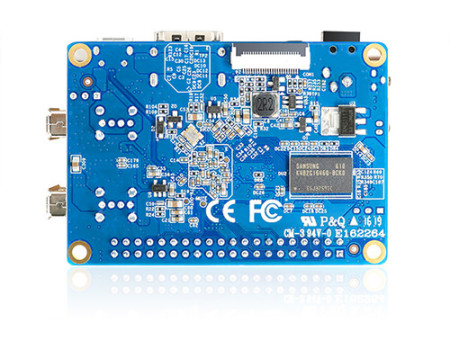

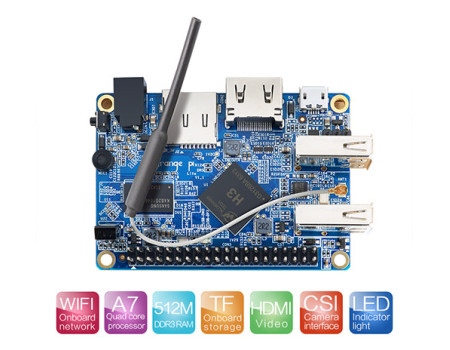

Orange Pi Lite is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM.



Specifications :
CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU ·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM) 512MB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 64GB) / MMC card slot
Wi-Fi Antenna
 Yes
Video Input A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input MIC
Video Outputs Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Audio Output HDMI
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Two USB 2.0 HOST, one USB 2.0 OTG
Buttons Power button
Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B+
GPIO(1x3) pin UART, ground.
LED Power led & Status led
Key POWER
Supported OS Android Ubuntu, Debian, Rasberry Pi Image,Lubuntu,
Product size 69mm × 48mm
Weight 60g




Links :
Orange Pi Lite official site
 Link
Orange Pi Lite OS Downloads
 Link
