Orange Pi PC

Orange Pi PC
Orange Pi PC
Orange Pi PC
Out Of Stock
Orange Pi PC
Orange Pi PC
Orange Pi PC
Orange Pi PC
₱1,450.00
  • Stock: Out Of Stock
  • Product Code: 580042198
  • Product ID: 580042198

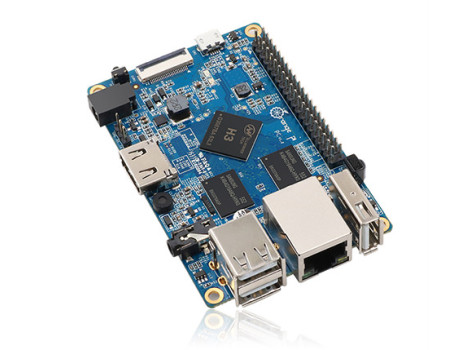

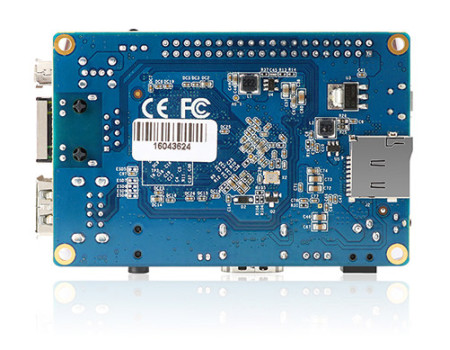

Orange Pi PC is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM




Specifications :
CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU ·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM) 1GB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 64GB) / MMC card slot
Onboard Network 10/100M Ethernet RJ45
Video Input A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input MIC
Video Outputs Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output 3.5 mm Jack and HDMI
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW4)
Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B+
GPIO(1x3) pin UART, ground.
LED Power led & Status led
Key IR input, POWER
Supported OS Android Ubuntu, Debian, Rasberry Pi Image
Product size 85 mm × 55mm
Weight 38g




Links :
Orange Pi PC official site
Link
Orange Pi PC OS Downloads
Link
