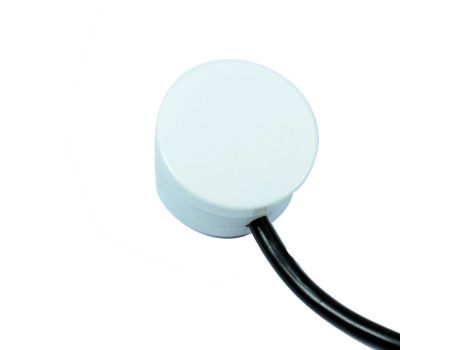

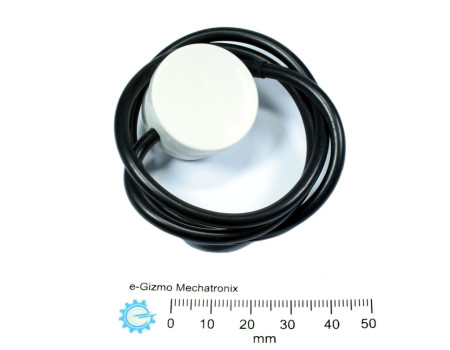

LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector

LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
For Restocking
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
LIQUID SENSING: XKC-Y26-PNP Contactless Liquid Level Detector
0 reviews - Write a review
₱382.50
  • Stock: For Restocking
  • Product Code: 580012769
  • Product ID: 580012769
For Restocking
Buy Now
Add to Wish List Compare this Product

This liquid level sensor uses advanced signal processing to detect presence of liquid in containers without having to drill holes. This sensor is installed OUTSIDE of the container. The liquid does not have to be in physical contact with the sensor.

Works only with non metallic containers. Works safely even with toxic and corrosive liquids.

Can be directly connected with gizDuino/Arduino digital inputs when powered at 5VDC. Will require a level converter to connect with gizduino/Arduino if powered by >5VDC source.


Features :
Non-contact liquid level sensors for non-metallic wall of the container without direct contact with the liquid, are not subject to corrosion acid and alkali and other corrosive liquids, or other debris from the scale effect
Intelligent level adjustment and level memory function, level status display, multi-point serial connection; supports NPN Output, high-low level output, PNP output,RS485 signal output
Detection is accurate and stable, can detect boiling water level
Pure electronic circuit structure, non-mechanical work, life durability and stable performance
High stability, high sensitivity, strong interference ability, free from external electromagnetic interference, there are special treatment for frequency interference and common mode interference, compatible with all 5 ~ 24V Power Adapter in the market
Strong compatibility, penetrate various non-metallic containers, such as plastic, glass, ceramics and other containers, sensing distance up to over 10mm; liquid, powder, particulate matter can be detected
Open collector output, wide voltage range (5V ~ 12V Or 12V ~ 24V), Suitable for connecting various circuits and product applications




Specifications :
Power Input 5-24VDC
Current Consumption
 200uA
Output Voltage (HIGH)
 5-24VDC
Output Voltage (LOW) 0VDC
Output Current 1-100mA
Response Time
 500ms
Working Temperature
 0-100 degrees Celcius
Induction Thickness Range (Sensitivity)
 0-22mm
Humidity
5%-100%
Protection Grade
 IP67 (Water splash resistant enclosure)




Downloads :
Hardware Manual
 Download
Sample Arduino/gizDuino Sketch
 Download
