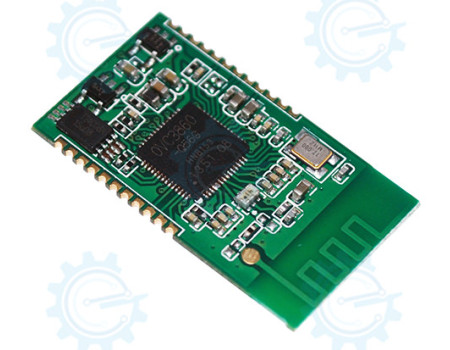

This Bluetooth Audio Module is based on OVC3860 which supports A2DP and AVRCP transmission and remote control protocol any Bluetooth source device (such as: Bluetooth-enabled mobile phones, Bluetooth stereo audio transmitter modules, Bluetooth adapter, etc.) to the wireless receiver to achieve high-quality stereo audio stream and audio player with remote control.
Features :
| Highly Integrated Bluetooth Audio Solution |
| Low power consumption
|
| Supports A2DP and AVRCP high quality stereo audio transmission protocols with the remote control |
| Paired name: BT-Speaker |
| Pair password : 0000 |
Specifications :
BluetoothVersion
|
2.0 |
| Frequency |
2.402 – 2.480 GHz |
| Max Transmit Power |
Class 2 / +2 dBm |
Receiver Sensetivity
|
-82dBm |
| Range |
10 meters |
| Data Rate |
upto 3Mbps (over the air) |
| UART Data Transfer Rate |
115200 bps |
| UART |
No flow control support |
| Microphone |
Mono microphone input with Bias |
Profiles
|
A2DP-Sink only
AVRCP Controller only
|
Supply
|
3.0V – 3.6V DC |
IO
|
1.7V – 3.6V DC |
| Power Consumption |
Operational less than 25mA (Active)
Idle (sleep) <1.0mA
|
Internal Antenna
|
On board PCB Antenna |
| External Antenna |
Connection via SMT pad |
Dimension
|
30mm x 17mm x 3.4mm |
