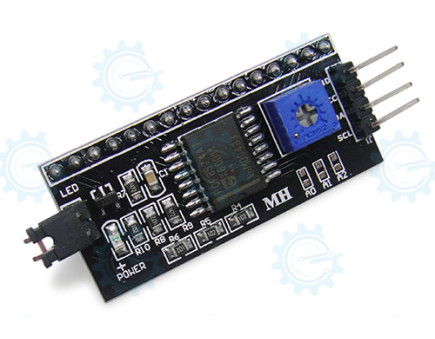

I2C Serial Interface Board Module for 16x2 20x4 LCD Display

I2C Serial Interface Board Module for 16x2 20x4 LCD Display
I2C Serial Interface Board Module for 16x2 20x4 LCD Display
0 reviews - Write a review
₱49.00
  • Stock: In Stock
  • Product Code: 580012685
  • Product ID: 580012685
Add to Cart
Buy Now
Add to Wish List Compare this Product

16x2 and 20x4 Alphanumeric LCD Displays are dirt cheap these days. Hence, they become very popular among electronics DIYers. There is one potential problem though when using one with your microcontroller (gizDuino/Arduino) projects- they require quite a number of I/O's - seven to be exact. Once you have installed an LCD, you are left with just a few I/Os for other uses.

The I2C interface board installed in this LCD eliminates this limiting factor. It connects to your microcontroller using just 2 I/O ports assigned to I2C, leaving you with 5 more I/Os to spare.

Specifications :
Power Input 5VDC
Data Interface
 I2C Communication
Display Type
 4X20 LCD, 16X2 LCD
I2C Addresses
 either 0x3F (Old) or 0x27 (New)
PCB Dimensions
 42 mm x 19 mm



Downloads :
Hardware Manual
 Download
Wiring Diagram with gizDuino PLUS
 Download
Sample Arduino / gizDuino Sketches
 Download
LiquidCrystal_I2C Version 1.2.1 Library
 Download
Wire Library
 Download
