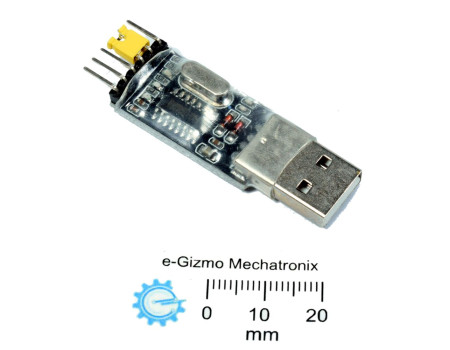

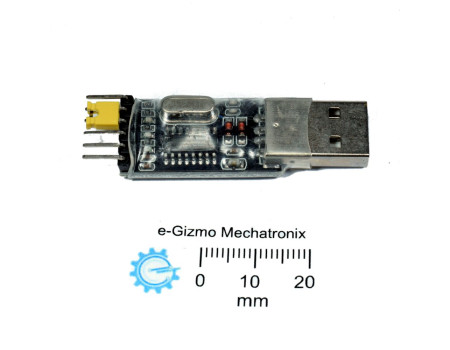

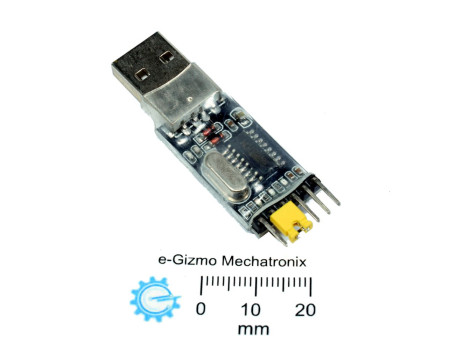

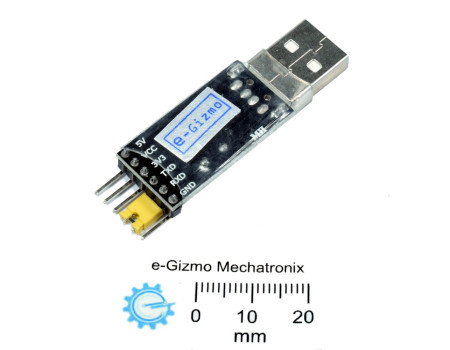

USB to TTL Serial CH340 Module

0 reviews - Write a review

₱56.00

Stock: In Stock
Product Code: 580012536
Product ID: 580012536

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Description
Reviews

This is a low cost USB to TTL module based on CH340 chip. CH340 is low cost alternative to FTDI USB serial Chips. The Module supports both 3.3V and 5V levels by a jumper selection. The module supports 50bps to 2Mbps baudrates.

Specifications :

Power Input	USB Port
Data Interface	Serial UART & TTL
USB Type	USB 2.0 Protocol
Baudrates	50,75,100,110,134.5,150,300,600,900,1200,1800,2400,3600,4800,9600,14400,19200,28800, 33600,38400, 56000,57600,76800,115200,128000,153600,230400,460800,921600,1500000,2000000
Supported OS	Windows, MAC, LINUX, Android

Applications :

Programming of Microcontrollers that can be programmed using serial boot loaders at 3.3V or 5.0V logic levels

Burn write STC MCU,NXP MCU,renesas MCU,NEC MCU

Data exchange between microcontroller and Desktop or Laptop Computers

Connection with GPS Devices

Connection with various external Phones, or modems, GSM Modules

All other applications requiring USB/Serial/TTL interface.

Router,HDD,ADSL,broad band modem firmware upgrade

Cellphone,XBOX360,GPS serial communication,vehicle inspection and test, dvd flash and so on

Simple UART communication,commonly used UART debugging tools in supper terminal

Two data transmission indicator can monitor data transfer status in real time

3.3V and 5V power supply interface,easy for the DDWRT of different voltage system that need power.

Downloads :

Datasheet	Download
Drivers	Download

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
