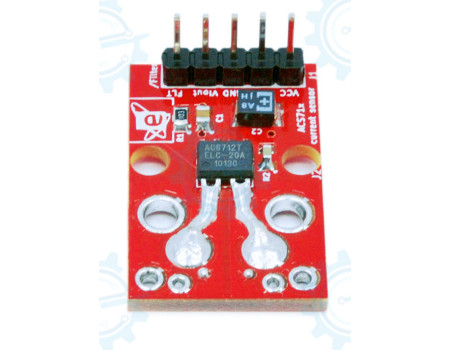

e-Gizmo ACS71x Current sensor is a Hall effect-based linear current sensor the on-board IC from Allegro with current fault output. Solutions for AC or DC current sensing in less than 100V. Typical applications include circuit protection current monitoring and motor and inverter control.
AC711T (12A), ACS712T(5A)/(20A)/(30A), AC713T(20A), ACS714T(30A)
Important note:
For ACS-712 AC or DC
Vcc = 5V
x05A -/+ 5A
x20A -/+ 20A
x30A -/+ 30A
Based on the datasheet
Specifications :
| Power Input : |
+5VDC |
| Available Variants : |
AC711T (12A) ACS712T(5A)/(20A)/(30A) AC713T(20A) ACS714T(30A) |
| PCB Dimensions : |
17mm x 27mm |
