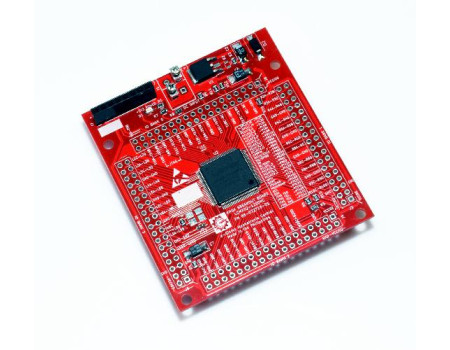

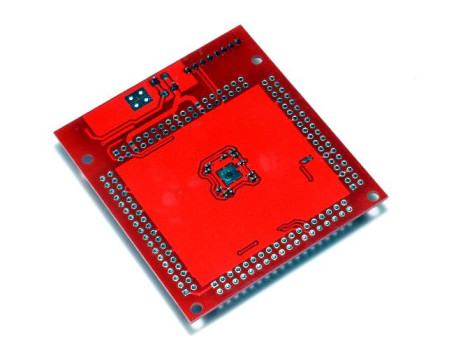

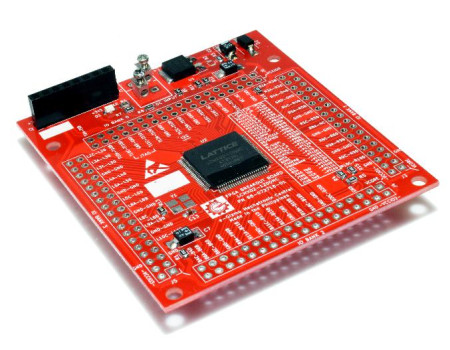

FPGA LCMX02 Breakout Board

Your affordable hardware companion for learning Hardware Description Language VHDL/Verilog, the state-of-the-art way of building digital circuitry (ASIC).

FPGA Breakout Board

- Lattice LCMX02-1200HC-4TG100I FPGA, full access to its 79 I/O
- Optional 50MHz Crystal Oscillator
- Lattice Diamond : Free Development Suite from Lattice Semiconductor

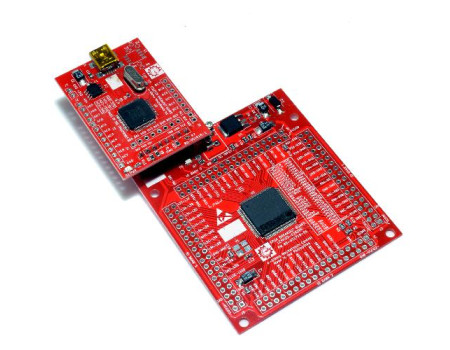

JTAG Programmer FT2232HL Breakout Board (Sold Separately)

- FT2232H Break out board: USB to JTAG/2xUART/SPI/I2C Board
This board is a useful all-around tool in its own right. You can use it for other applications, not just as JTAG programmer. It can be used as a USB to 2 channel UART, SPI, or an I2C bridge. Windows DLL is freely available for easy integration to your own PC apps.

Hardware Manual Download:

LCMX02 FPGA Breakout Board Hardware Manual

Useful Links:

Lattice Diamond Development Suite

-Full featured VHDL/Verlog IDE with  simulator. Registration required, but it's totally free.

Elab Forum

- Pinoy FPGA tutorial and technical discussions. A better place to look for information (better than Social Media).

More updates coming up, please visit this page again soon.

    Demo Video:

More information? Wiring Diagran and Sample Codes! Visit Our Egizmo Tech Blog!
