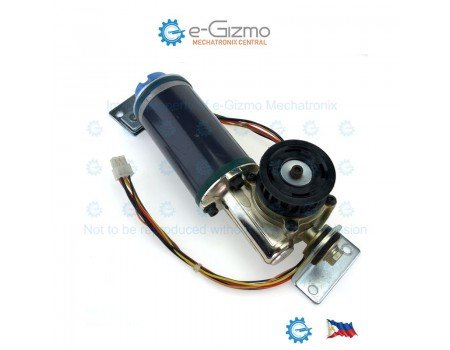

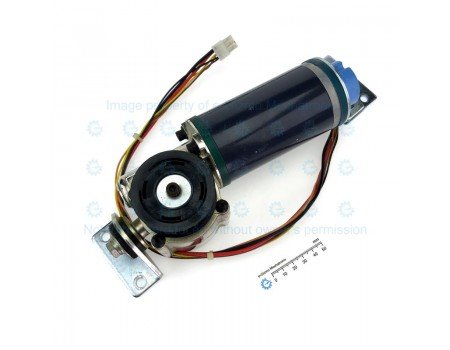

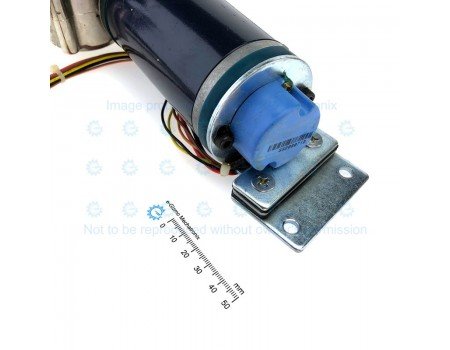

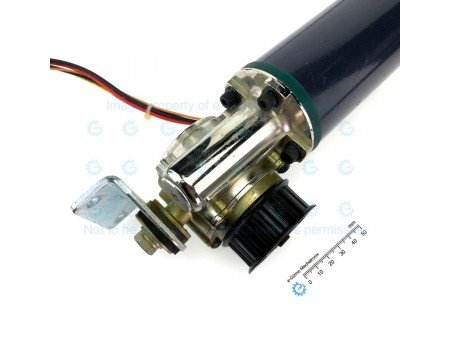

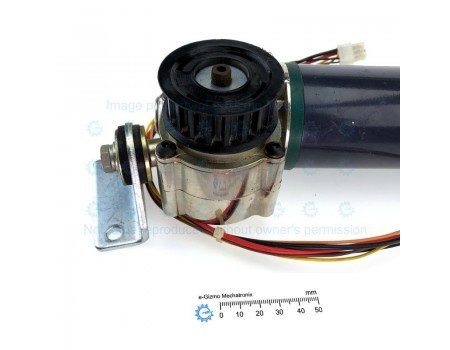

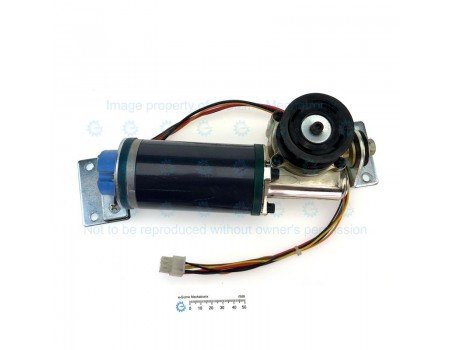

24V DC High Torque Motor with Right Angle Gear Head & Encoder

This motor is largely used in sliding doors, but can be easily repurposed for other functions. It has an integrated incremental encoder that you can use to monitor/control speed & position.

Important: Intermittent use only. Not suitable for continous operation.

Measured Parameters:
Operating Voltage: 24VDC
Min. Operating Voltage: 5VDC
No load current @ 24V: 1.0-1.5A
Output RPM (No load) : 320/145rpm @24V/12V

Incremental Encoder:
Supply Voltage: 5V
Output: Phase A/B NPN Open Collector (Pull up is needed)
Pulse per output drive revolution: 140ppr

Weight: 2.5kg

Measured parameters are approximate values.

Motor Wiring (AWG18 wires)

Red: (+)
Black: (-)
Reversible

Encoder Wiring (AWG22):
Black: 0V
Orange: +5V
Brown: Phase A output
Yellow: Phase B output

Note: This item is a quality used surplus in good working condition. Affordably priced for hobby and DIY enthusiasts. Expect minor cosmetic flaws like small dents, scratches, chipped paint.
