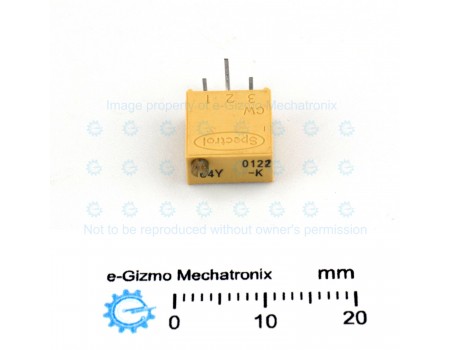

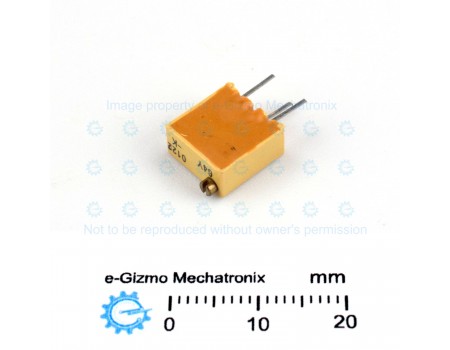

Spectrol 200K Precision Trimmer - 3/8” square, multiturn 64Y204

Features
• Multifinger precious metal wiper for long term set point stability
• Central pivot locating gear for improved stability
• Unique ratchet device integral with gear to ensure long term
reliability
• Double chevron shaft for sealing plus consistant torque and
reliable adjustability
• IC style pins for easier board insertion

Resistance: 200K +/-10%
Effective Travel: 25 Turns
End Resistance: 2R maximum
Temperature Coefficient: 100ppm/C
Power Rating: 0.5W
Contact Resistance Variation: 1%
Rotational Life: 200 cycles
Resistance Element: Cermet
Setability: +/- 0.05%
Operating Temperature: -55C to +125C

Package/Image: s64y
