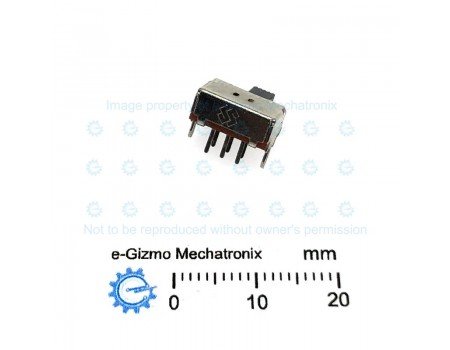

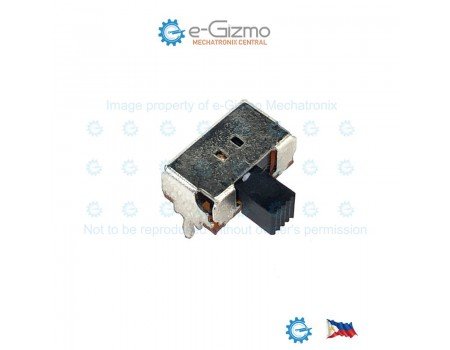

SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting

SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
SK-22D05 SK22D05 2P2T Miniature Slide Switch DPDT Non Shorting
0 reviews - Write a review
₱10.00
  • Stock: In Stock
  • Product Code: 131400022
  • Product ID: 131400022
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: switch

Contact Format: 2 pole 2 position Slide Switch DPDT
Model No: SK-22D05

Contact Rating: 0.3A @ 30VDC
Initial Contact Resistance: 30mR max
Operations: >10,000 cycles
Knob Travel: 2mm
Knob: 4.5mm side position
Pins: 6
Pin Pitch: 2.0mm

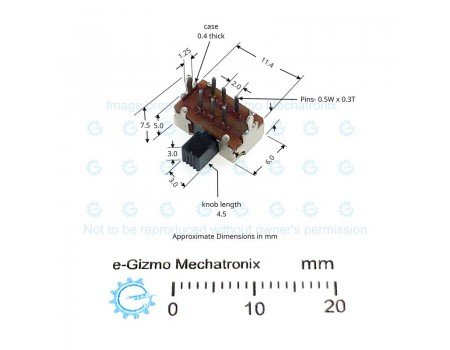

Please refer to the dimensional drawing in the photo gallery for more info.
