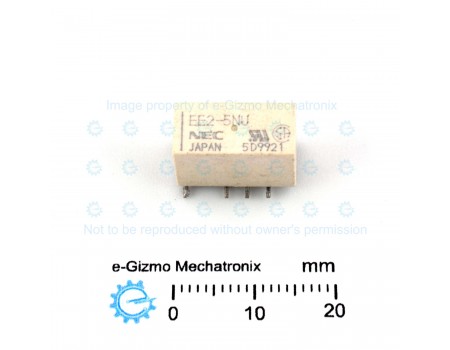

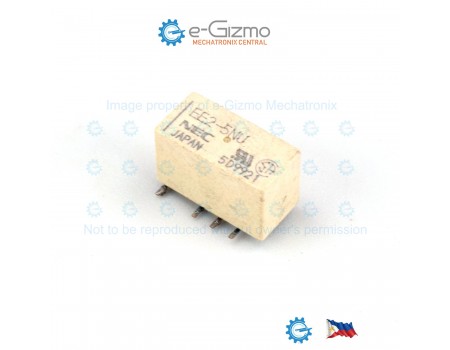

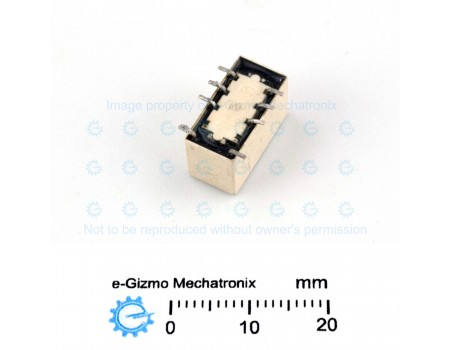

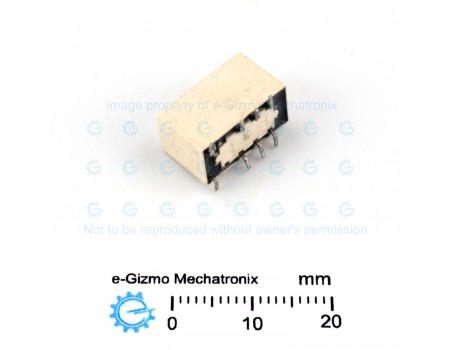

NEC EE2-5NU 5V 2A DPDT Compact SMD Relay UL,CSA

0 reviews - Write a review

₱35.00

Stock: In Stock
Brand: NEC
Product Code: 130800034
Product ID: 130800034

NEC

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: relay

Description
Reviews

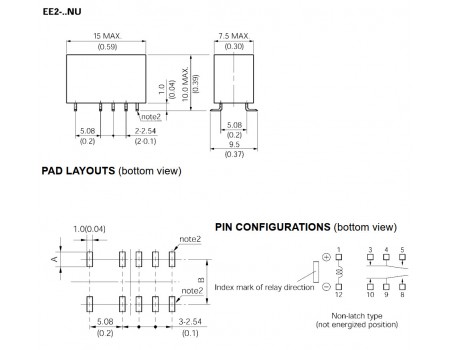

NEC EE2-5NU SMD Relay.
5V Coil Voltage, High DC Voltage (220V) contact rating
>100million operations at no load
Made in Japan

Contact Rating:
Maximum Switching Power: 125VA
Maximum Switching Voltage: 220VDC/250VAC
Maximum Switching Current: 2A
Maximum Carrying Current: 2A
Intial Contact Resistance: 0.075R
Contact Material: Silver Alloy with Gold Alloy overlay
Operate Time: 2ms
Release Time: 1ms
Running Specifications: >1million operations @ 0.1A load

Coil Specifications
Nominal Coil Voltage: 5VDC
Must Operate Voltage: 3.75V
Must Release Voltage: 0.5V
Coil Resistance: 178 ohms

Safety Listing: UL, CSA
