Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector

Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
Winstar Graphics LCD Module 122 x 32 pixels WG12232A with Connector
0 reviews - Write a review
₱330.00
  • Stock: In Stock
  • Product Code: 180400007
  • Product ID: 180400007
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: lcd , lcd display , display , vfd , vfd display , lcd module

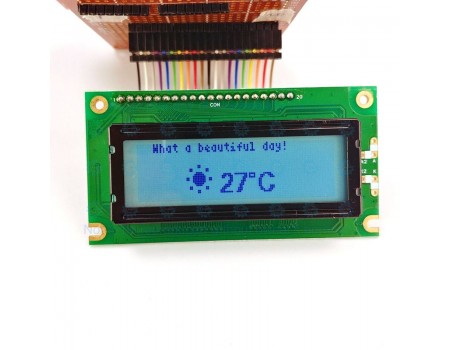

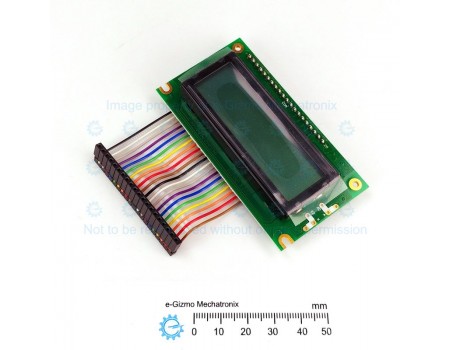

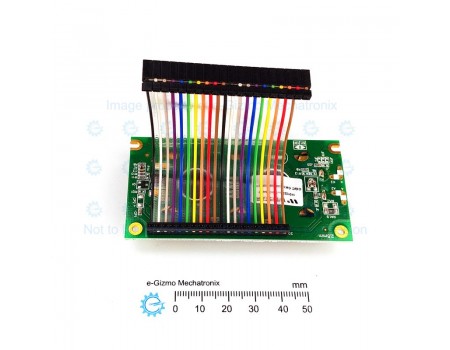

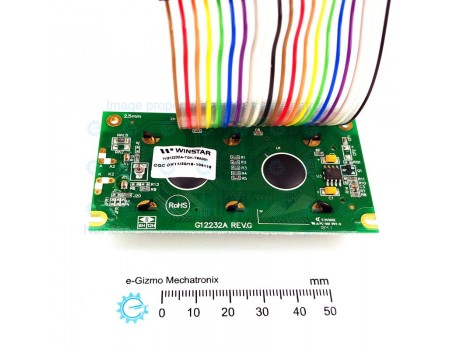

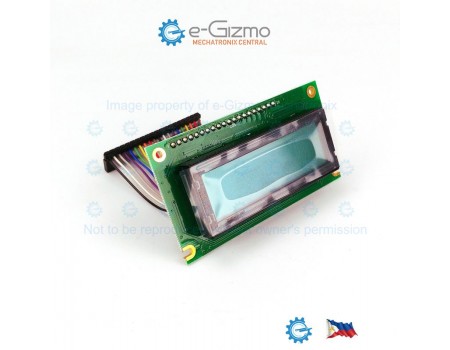

Winstar 122x32 Graphic LCD Display with Flat Cable Connector.
Made in Taiwan

Controller: SBN1661G
Power Supply: 5V
Interface: 6800 (Parallel)
With Backlight

Module Dimension: 84x44mm
Viewing Area: 60x18mm
Pinout:
1- Vss (Ground)
2- Vdd (Power Supply for Logic)
3- Vo (Contrast)
4 - A0 (Data/Instruction select)
5 - CS1 (Chip Enable 1)
6- CS2 (Chip Enable 2)
7- N.C.
8- N.C.
9- R/W (Read/Write)
10- DB0 (Data Bus Line)
11- DB1
12- DB2
13- DB3
14- DB4
15- DB5
16- DB6
17- DB7
18- RESET (Active Low)
19- A (Backlight)
20- K

Downloads :
WG12232A Datasheets
 Downloads
Pinouts to gizDino UNO SE
 Downloads
U8g2 library
 Downloads
Sample Codes library
 Downloads
