DDS Function Gen

DDS Function Gen
DDS Function Gen
DDS Function Gen
DDS Function Gen
DDS Function Gen
DDS Function Gen
DDS Function Gen
0 reviews - Write a review
₱274.00
  • Stock: In Stock
  • Product Code: 211300004
  • Product ID: 211300004
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: Function Generator , AD9833 , generator , sine , signal

The ADD9833 chip is a Direct Digital Synthesis DDS waveform generator capable of generating Sine, Triangle and square wave functions with crystal accurate frequencies of up to 12.5MHz. It communicates with a host controller (e.g. gizDuino/Arduino) via an SPI interface.

0-12.5MHz Direct Digital Synthesis
Sine/Triangle/Square wave Function Generator
Based on AD9833 Chip
SPI Interface

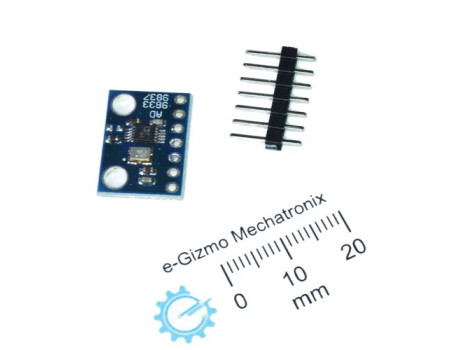

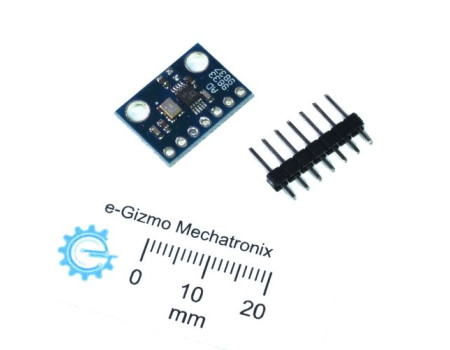

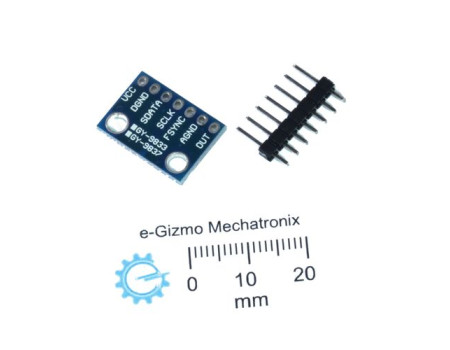

This is a AD9833 breakout board.
Additonal support components are needed to build a complete stand alone Function Generator


Sample Sketch
 Link
