Serial Camera (CMOS Serial Port (UART) Camera Module)

Serial Camera (CMOS Serial Port (UART) Camera Module)
Pre-order
Serial Camera (CMOS Serial Port (UART) Camera Module)
0 reviews - Write a review
₱1,480.00
  • Stock: Pre-order
  • Product Code: 580011604
  • Product ID: 580011604
Pre-order
Buy Now
Add to Wish List Compare this Product

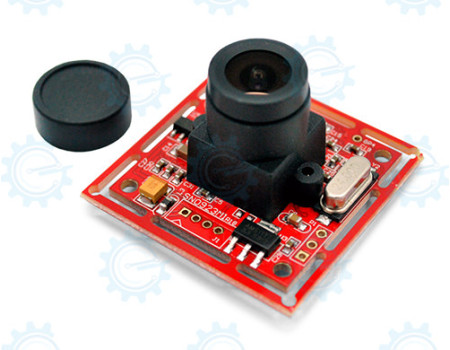

Capture JPEG images and send them via RS232 UART interface. This serial camera module makes it very easy for your microcontroller circuits to add image capture functions for various applications. VGA 640x480 image resolution, 115kbps UART rate.



Features :
Color serial camera module with lens
Resolution: VGA 640*480
Image Format: JPEG
Baud Rate: adjustable
CMOS serial port (UART) camera module
Image Sensor: 1/4” CMOS OV7725
Signal System: PAL, NTSC
Output: UART and CVBS
Baud Rate: 115200
Compressed Image Format: JPEG
Operating Temperature: -10°C to 60°C (RH90% Max)
Storage Temperature: -20°C to 70°C (RH90% Max)
Power Supply: 5V
Dimension: 32mm*32mm,38mm*38mm




Downloads :
Technical Manual
Download
e-gizmo Serial camera demo
Download
Serial Camera Demo rev3
Download
Serial Camera with USB to UART connections
Download
Serial Camera with gizDuino PLUS connections
Download
Modified SD Library
Download
Serial Camera on GitHub
Download
