Universal Lithium-ion Battery Charge Indicator 1S to 8S

Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
Universal Lithium-ion Battery Charge Indicator 1S to 8S
0 reviews - Write a review
₱79.00
  • Stock: In Stock
  • Product Code: 211100057
  • Product ID: 211100057
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , kit sensor , measurement , kit measurement

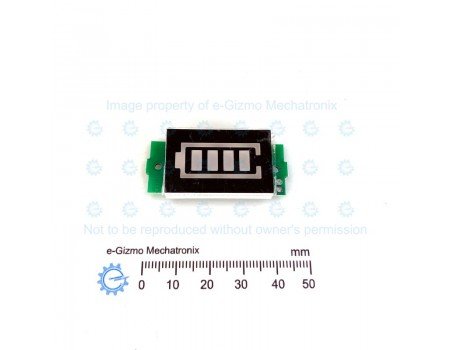

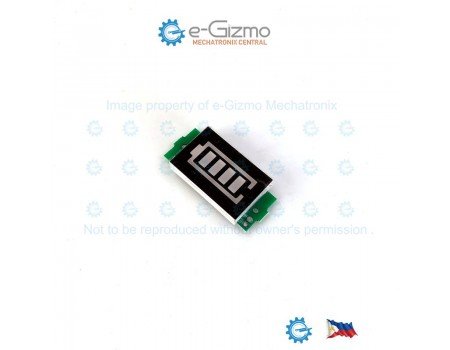

4-Levels 1S to 8S Lithium-ion Battery Charge Indicator Module.
- Jumper (solder pads) selectable configuration.

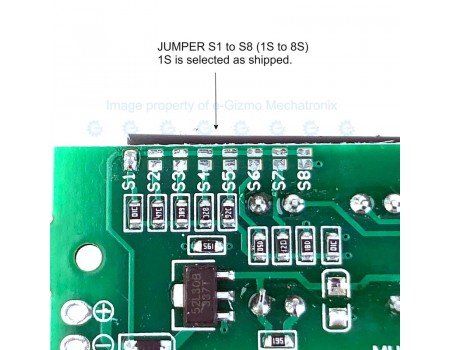

Jumper Setting:
Apply solder bridge to any one of solder pads marked S1 to S8 corresponding to 1S-8S configuration.

Important: Ensure that only one solder pads is solder shorted. Bridging more than one solder pad will result to incorrect indications.

Typical Trigger Voltage:(note:N represents battery quantity)
1. Battery voltage< N*3.3V, No bar illuminated
2.Battery voltage > N*3.3V,it will illuminate 1 bar
3.Battery voltage > N*3.5V,it will illuminate 2 bars.
4.Battery voltage > N*3.7V,it will illuminate 3 bars
5.Battery voltage > N*3.9V,it will illuminate 4 bars
