TTP223 Capacitive Touch Module with 4 Modes of Operation

TTP223 Capacitive Touch Module with 4 Modes of Operation
TTP223 Capacitive Touch Module with 4 Modes of Operation
TTP223 Capacitive Touch Module with 4 Modes of Operation
TTP223 Capacitive Touch Module with 4 Modes of Operation
TTP223 Capacitive Touch Module with 4 Modes of Operation
TTP223 Capacitive Touch Module with 4 Modes of Operation
TTP223 Capacitive Touch Module with 4 Modes of Operation
0 reviews - Write a review
₱12.00
  • Stock: In Stock
  • Product Code: 210900011
  • Product ID: 210900011
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , peripherals , kit peripherals

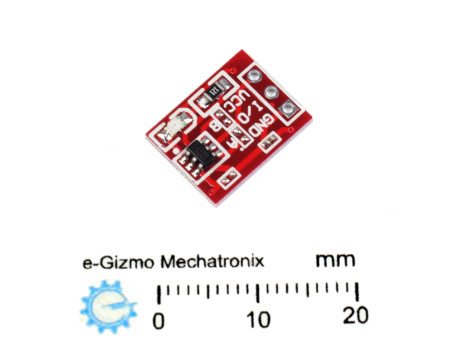

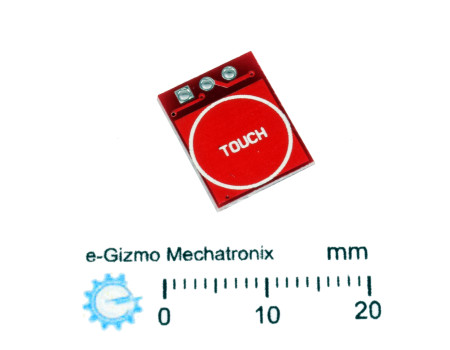

Single-channel Capacitive Touch Module with 4 modes of jumper selectable operation.

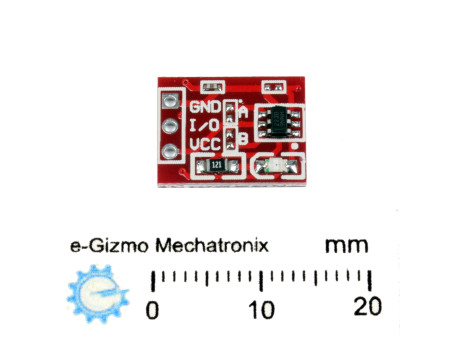

Jumper pads are marked as "A" and "B".

Mode of operations:
A-open, B-open = Active high Touch-ON
A-open, B-shorted = Active High Touch-ON Touch-OFF
A-shorted, B-open = Active Low Touch-ON
A-shorted, B-shorted = Active Low Touch-ON Touch-OFF

Power Requirement: 2.5V-5.5VDC

Dimensions: 11 x 14.5 x 2.1 mm approx.
