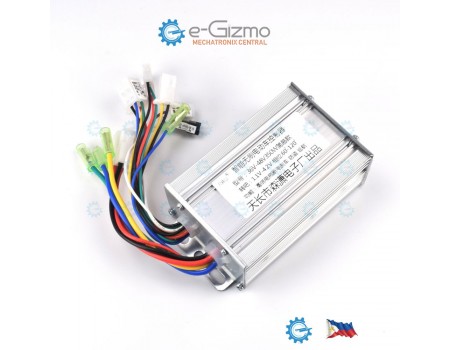

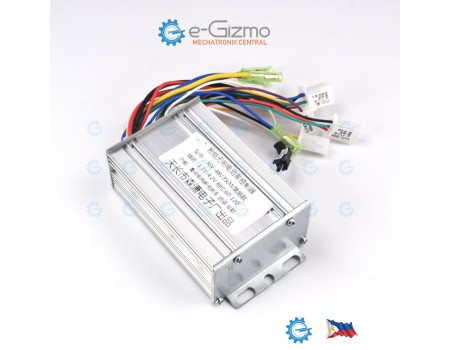

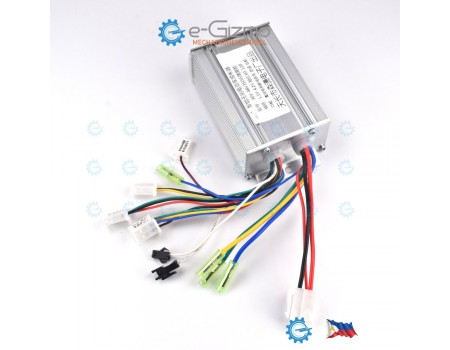

350W BLDC Brushless DC Motor Controller Driver

This 3-phase Brushless DC Motors controller, although primarily designed for e-bikes, works just as well with many other DC brushless motors used for DIY projects.

Operating Voltage: 36/48VDC Auto-select
Operating Current: 15A Max.
Output Capacity: 350W maximum
Speed Control Input Voltage: 0-5VDC
Hall Sensor Input: 0-5V Logic

Note 1: This controller will work even without the hall sensors connected.

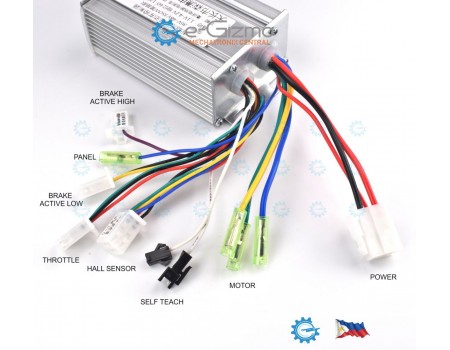

Connection Guide
Power - Power input and enable
Red (+)
Black (-)
Red (thin gauge) Enable, connect to (+) to enable
Motor - 3-phase Yellow,Green, Blue
Self-Teach - momentarily short until the motor rotates in the correct direction.
Hall Sensor
Red- +5V OUTPUT
Black - 0V
Yellow, Green, Blue - Hall sensor inputs
Throttle
Red- +5V OUTPUT
Green- 0-5V Input
Black - 0V
Brake
Black - 0V
Yellow - Active Low input
Violet - Active High input
Panel
Instrument Panel
