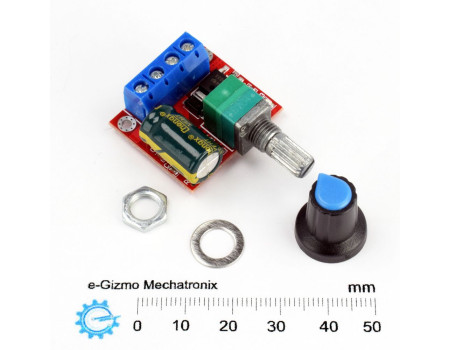

90W 4.5-35VDC PWM DC Motor Speed Controller Module

90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
90W 4.5-35VDC PWM DC Motor Speed Controller Module
0 reviews - Write a review
₱54.00
  • Stock: In Stock
  • Product Code: 210700006
  • Product ID: 210700006
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: kit , kit motor , kit driver , motor driver , driver

Pulse Width Modulation DC Motor Speed Controller.
For DC Brush Motor Only

Operating Voltage Range: 4.5VDC - 35VDC
Standby Current: 7uA Typical
Output Current: 5A Maximum
Rated Output: 90W maximum
PWM Frequency: 20KHz
Duty Cycle: 1-100%

Package:
1x PWM Module
1x Knob
1set Potentiometer Nut

Weight: 15g
Dimensions: 30 x 26.5 (PCB only)

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
