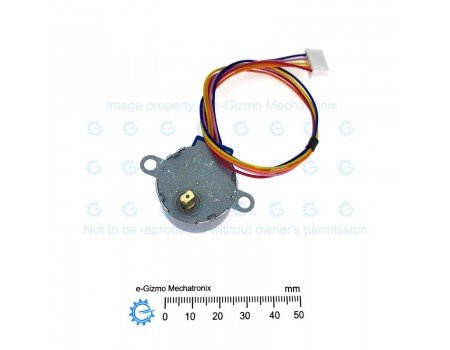

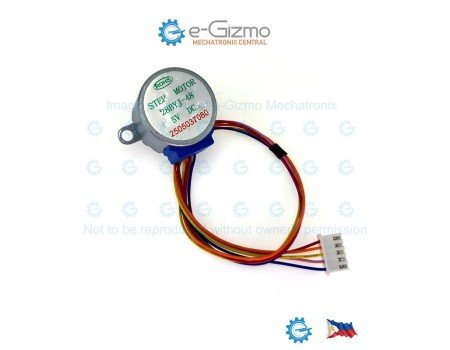

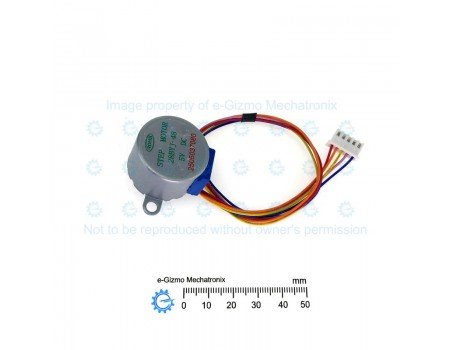

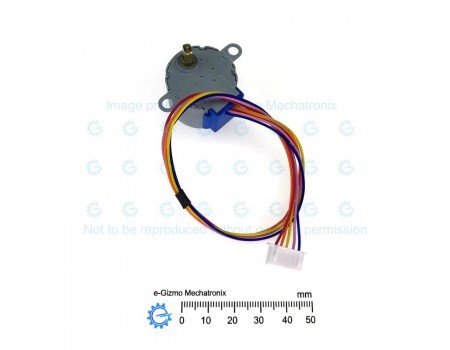

5V Unipolar Type Stepper Motor 64 steps per revolution 28BYJ-48

Popular commercial and hobby stepper motor.

Type: Unipolar, 4 phase
Working Voltage: 5V
Motor Step Angle: 64 steps per revolution (5.625 degrees per step)
Number of wires: 5
Wire Termination: 2.54mm Female Wafer Connector

Important Note:
The following parameters may vary according to manufacturer. We cannot guarantee the exact values hence we do not recommend use of this item in applications where these are crucial.

Gear Ratio: 32:1 (Some may use 16:1, 64:1)
Drive Shaft Step Angle: 2048 steps per revolution
Stall Torque: 300gf-cm


Pin out:
1 - Red - COMMON
2 - ORANGE - Coil 1
3 - YELLOW - Coil 3
4 - PINK - Coils 2
5 - Blue - Coil 4

Warning: Driver is required (e.g. ULN2003). Do not connect this motor directly on your Arduino/microcontroller pins. Permanent damage will occur.
