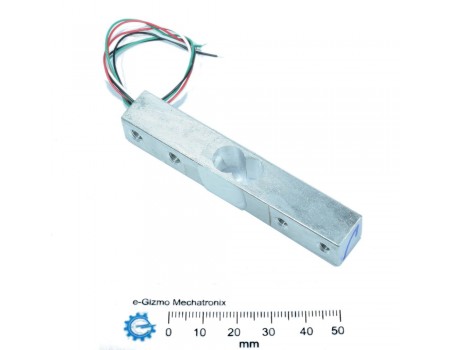

Low Cost Load Cell 1kg

Low cost load cells for General Weighing Applications
Rated Load: 1kg

A load cell is a device used to measure force. When an external force is applied to it, the load cell produces an electrical signal as output. One This product is a strain gauge type of load cell, which is frequently employed to measure weight.

Aluminum Load Cell
Output Sensitivity: 1mV/V +/- 0.1mV
Nonlinearity: 0.05% F.S.
Repeatability: 0.05% F.S.
Output Impedance: 1000 +/-5% ohms
Dimensions: 12.8 x 12.8 x 80mm
Screw Mounting: M4

Wiring:
Red - (+) Exciting Voltage
Green - (-) Exciting Voltage
Black - (+) Differential Signal Output
White - (-) Differential Signal Output
