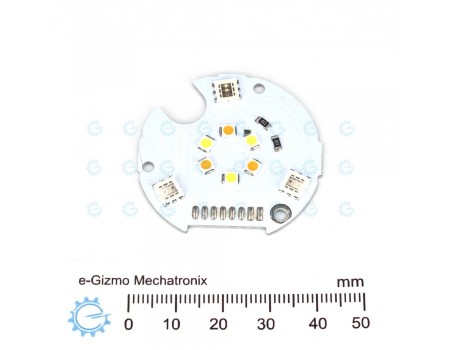

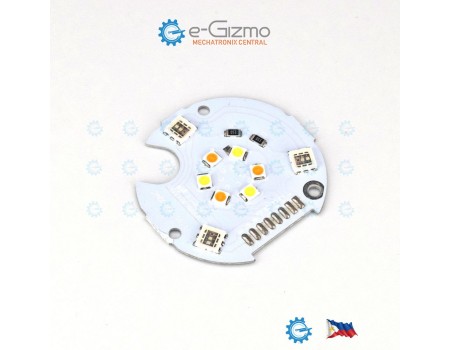

DIY Daylight + Warmwhite + RGB LED on 39mm Aluminum Substrate

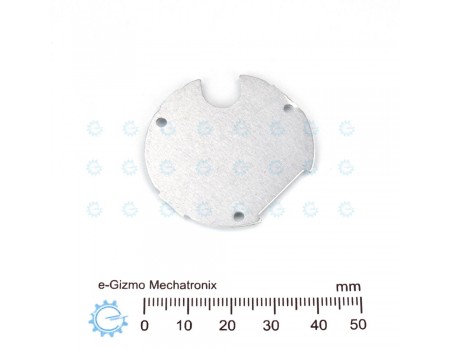

This product is a DIY LED module with all the mood colors you will ever want. The LEDs are bonded on an aluminum PWB for heatsinking. You can operate the LEDs at slightly higher wattage if you mount it on an external heatsink

Primary LEDs ( Open-air, Daylight, and Warm White)
Working Current Daylight: 220mA (2W)
Working Current Warm White: 220mA (2W)
Working Voltage: 9V Approx

RGB LEDs
Working Voltage: 12V per leg/color

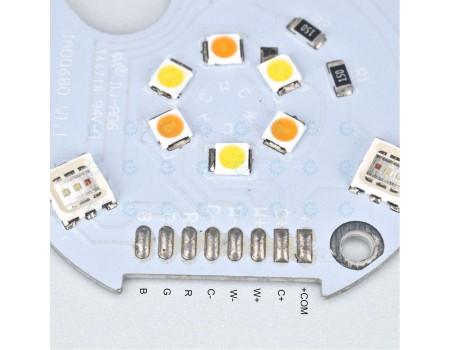

Pinout:
C+ Daylight (+)
C- Daylight (-)
W+ Warmwhite (+)
W- Warmwhite (-)
+COM 12 RGB Common (+)
R Red (-)
G Green (-)
B Blue (-)
