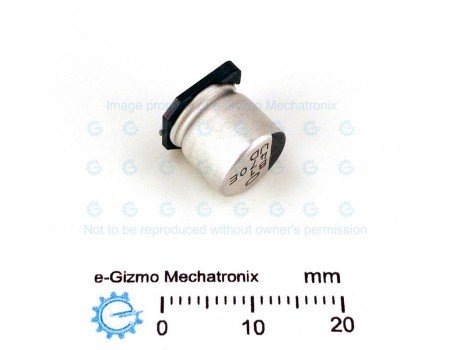

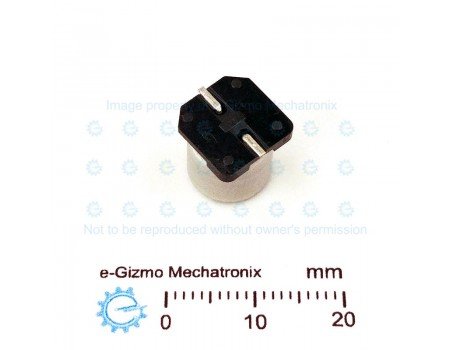

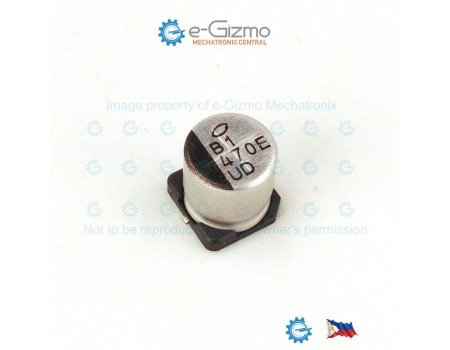

Nichicon 470uF 25V 105C Low ESR SMD Electrolytic Capacitor UUD Series

Name: Nichicon 470uF 25V 105C Low ESR SMD Electrolytic Capacitor UUD Series
Brand: nichicon
Price: 16.00 PHP
Availability: InStock

Nichicon 470uF 25V 105C Low ESR SMD Electrolytic Capacitor UUD Series

0 reviews - Write a review

₱16.00

Stock: In Stock
Brand: nichicon
Product Code: 101100032
Product ID: 101100032

nichicon

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Tags: capacitor , electrolytic , smd , smd electrolytic

Description
Reviews

Nichicon UUD Series Low Impedance Aluminum Electrolytic Capacitor

Manufacturer Part No: UUD1E471MCL1GB
Capacitance:470uF +/-20%
Working Voltage: 25VDC
Category Temperature Range: -55C to +105C
Dissipation Factor: 0.16 @120Hz
Ripple Current: 670mA @ 120Hz +105C
Impedance: 0.09R @ 100kHz
Dimensions: d10 x 10mm

Markings may vary from what is shown in the image.
