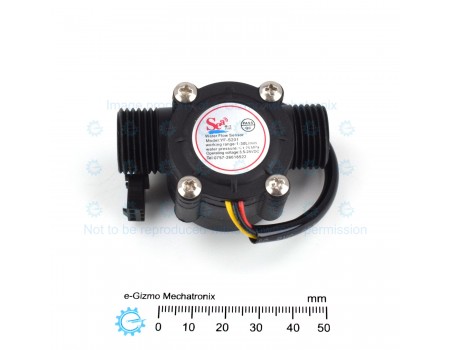

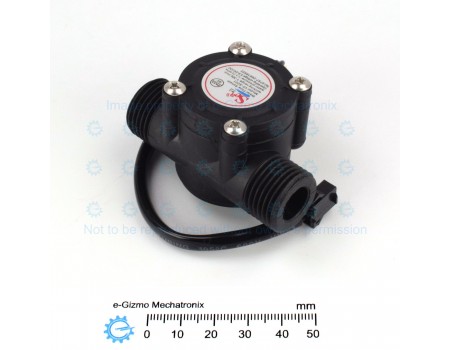

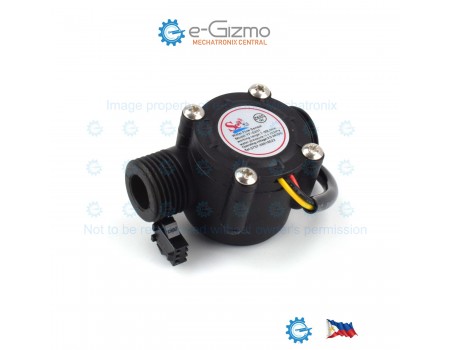

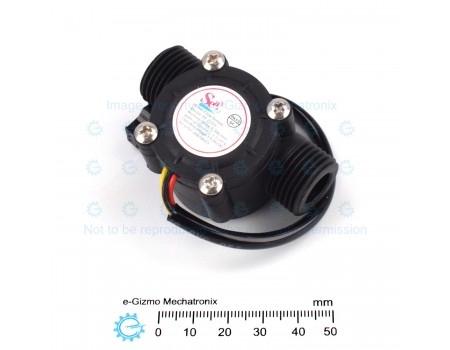

YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor

YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
YF-S201 Flowmeter 1-30L/min Liquid Flow Sensor
0 reviews - Write a review
₱199.00
  • Stock: In Stock
  • Product Code: 131000026
  • Product ID: 131000026
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: sensor

Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)

Specifications:
Supply Voltage: 5-18V DC
Working Current: 15mA Typica; at 5VDC
Flow Range: 1 - 30 L/min
Output Type: Pulse (Digital)
Pulses per Liter: 450
Thread Size: 1/2"
Maximum Pressure: 1.75MPa
Maximum Temperature: 80C

Wiring:
Termination: 3 pin 2.54mm pitch JST connector
Red - + Positive
Black - Negative (Ground)
Yellow - Pulse output (5V logic at 5V supply voltage)

Write a review

Please login or register to review

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
